About this item

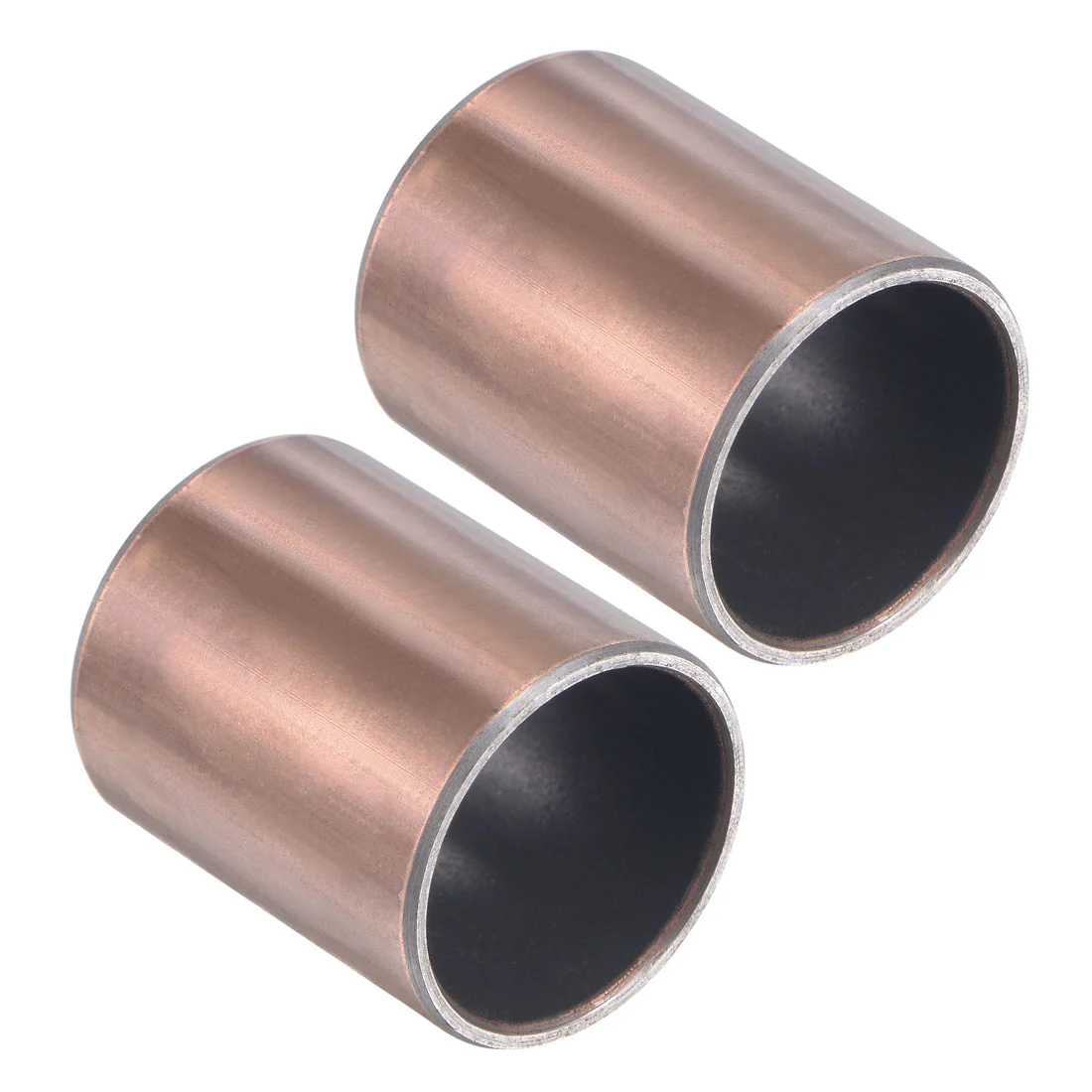

- Size – Bore Diameter: 1/2″, Outside Diameter: 19/32″, Length: 1/2″. Good dimensional stability. Thin wall and light weight, suitable for compact spaces.
- Material – Carbon steel base with Bronze Sintered and composite coating. With high mechanical strength and good thermal conductivity, it is suitable for use in a wide range of low and high temperatures.
- Function – The bushings can be used for different purposes, such as positioning, wear and vibration reduction, isolate the shaft from special media to increase the life of the shaft.
- Feature – Oilless, maintenance-free, good frictional property, stable low friction coefficient. Featured with good load capacity and wear resistance performance.
- Application – Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment, agricultural machinery and other industrial equipment.
Specification:
- Material: Steel backing, Sintered Porous Spherical Copper Powder Layer, PTFE
- Finish: Copper Plating
- Friction Factor (Dry Friction): 0.04-0.2
- Friction Factor (Oil Lubrication): 0.02-0.07
- Bore Diameter: 1/2″
- Outside Diameter: 19/32″
- Length: 1/2″
Package Contents:
- 2 x Sleeve Bearings
Description:
- Plain Bearings are constructed with steel as a base, sintered porous spherical copper powder layer, rolled with PTFE and Lead compound as inner surface and copper-plated on the outer surface.
- Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
Solid friction Oilless Bushing can operate during a wide temperature range. Suitable for applications with sliding movements. - Oilless Sleeve Bearings are most suitable for places where self-lubricating properties of the material are required.
- Note: Spilt Line can not be used for bearing.
