About this item

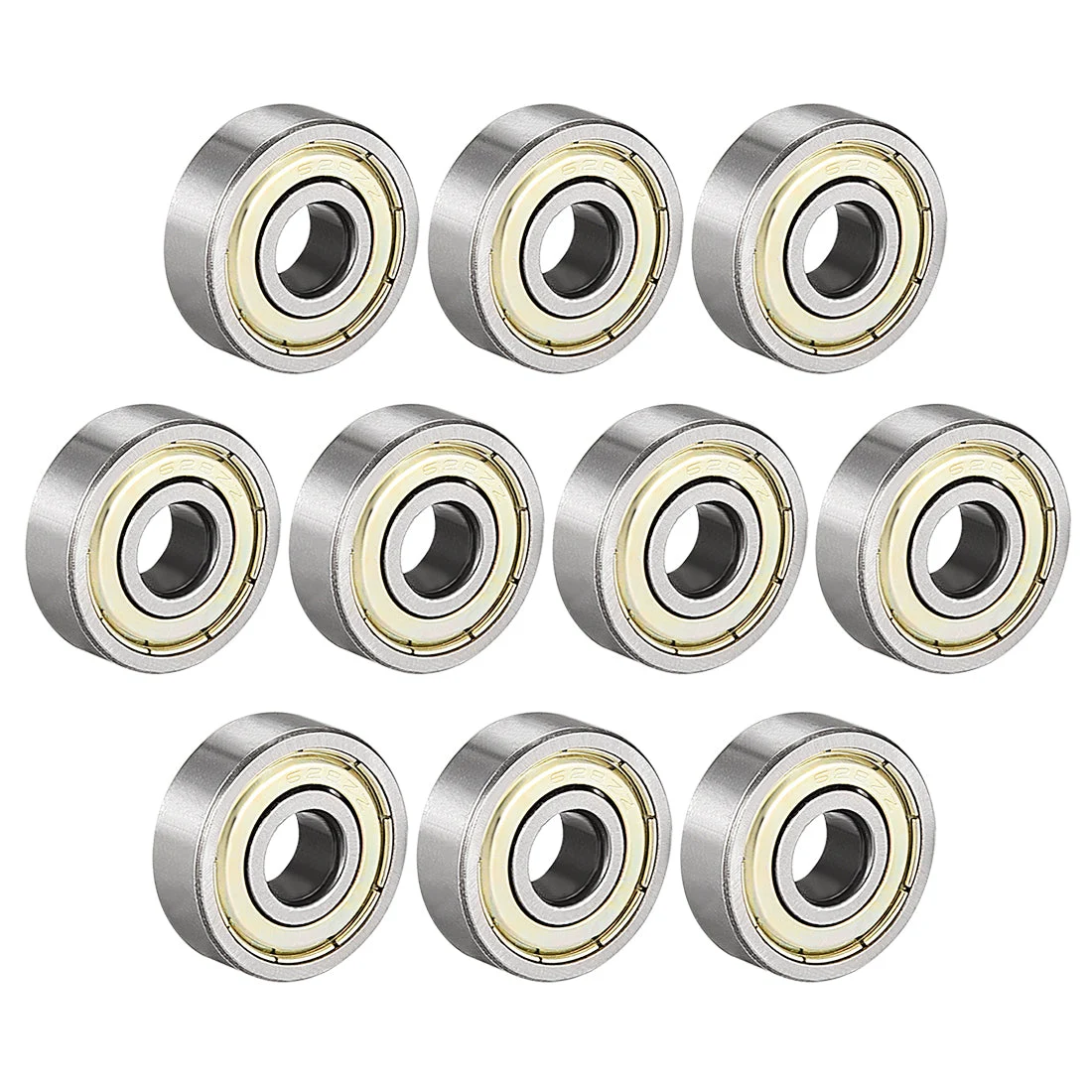

- Size: 6204ZZ (Inner Dia.=20mm, Outer Dia.=47mm, Thickness=14mm)
- Shields on BOTH SIDES of the bearing to keep dust out. Suitable for high speed operation
- Made from Carbon Steel, features with good anti-rust and corrosion resistance
- ABEC Tolerance 1 (P0) for most general use
- Same As 6204-2Z / 80204. Pre-Lubricated, Easy to maintain
NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
Description:
- Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
- With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
- Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for hardness.
- Single-row, pre-lubricated, normal accuracy.
Selection Guide:
Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.
Sealed (Designation SuffixRS/2RS) – Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: 6204ZZ
Shield Type: Double Shield
Material: Carbon Steel
Cage Material: Stamping Steel
Inner Diameter (d): 20mm
Outer Diameter (D): 47mm
Thickness (B): 14mm
Dynamic Load Rating (Cr): 12.8kN
Static Load Rating (Cor): 6.65kN
Accuracy Class: P0 (ABEC-1)
Number of Pack: 10 Pcs
Weight:977g
