Uxcell Deep Groove Ball Bearings Metric Double Sealed High Carbon Steel Z1

About this item

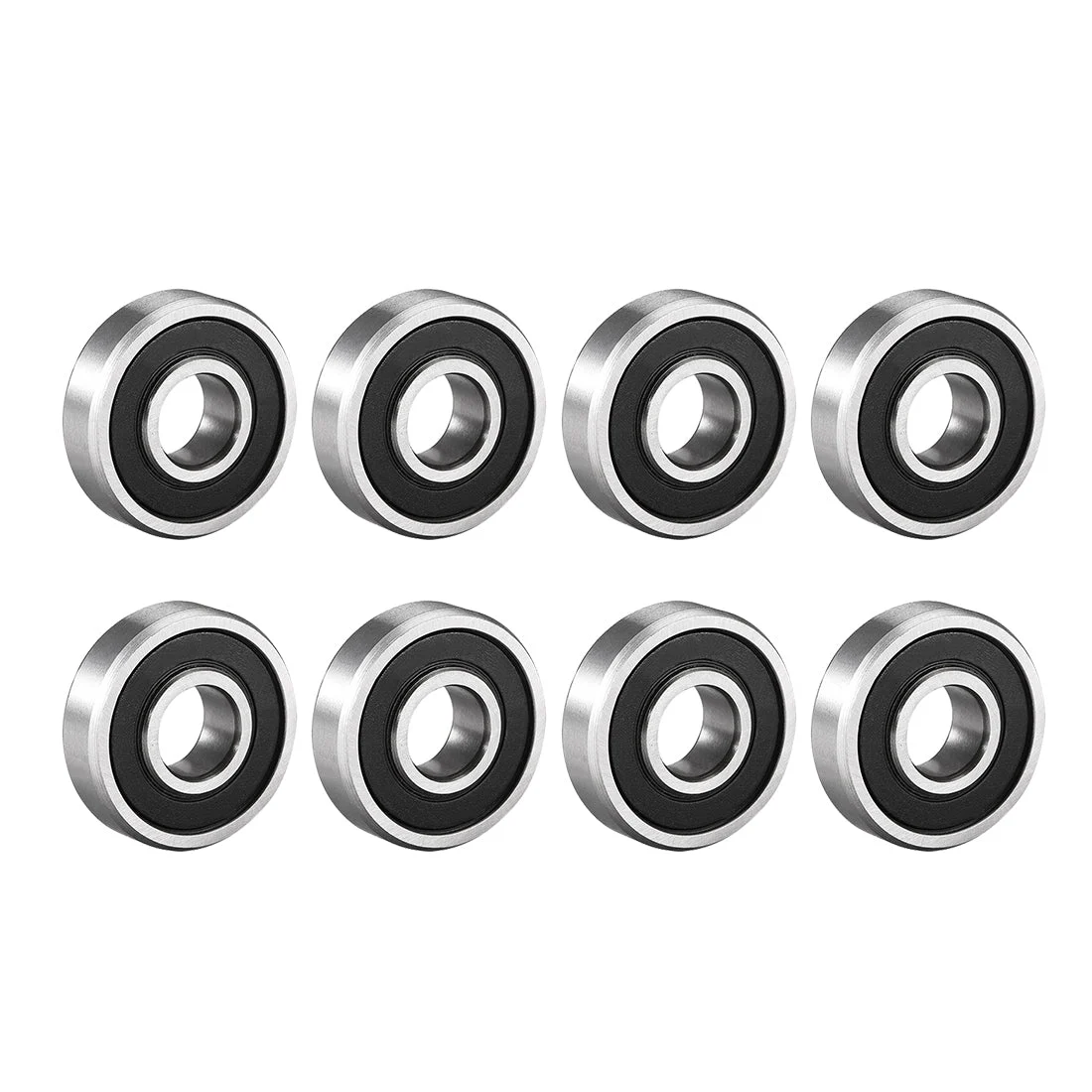

• Size: 6000-2RS (Inner Dia.=10mm, Outer Dia.=26mm, Thickness=8mm)
• Sealed on BOTH SIDES of the bearing to keep lubricant in. Suitable for complex environment
• Made from High Carbon Steel, durability and resistance to under heavy loads
• ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
• Same As 6000-2RS / 180100. Pre-Lubricated, Easy to maintain

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
• With small friction and high-limit speed, Uxcell’s Deep Groove Ball Bearings are cost-effective and require little maintenance.
• These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
• Single-row, pre-lubricated, normal accuracy.

Selection Guide:

Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) – Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 6000-2RS

Sealed Type: Double Sealed

Material:High Carbon Steel

Heat Treatment:Quenching

Hardness: HRC50-55

Cage Material: Stamping Steel

Inner Diameter (d): 10mm

Outer Diameter (D): 26mm

Thickness (B): 8mm

Dynamic Load Rating (Cr): 4.58kN

Static Load Rating (Cor): 1.98kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 8 Pcs

Weight: 154g
