Uxcell Bearing Sleeve Length Self-Lubricating Sintered Bronze Bushings

About this item

• Bore: 10mm, Outside Diameter: 16mm, Length: 10mm
• Application – Bronze bushings are most for general-purpose where moderate speeds and loads are present. Sleeve bearings are used in a vast variety of industrial equipment.
• Material – Sintered Bronze (copper-tin alloy). They are self-lubricating, making them maintenance-free. High wear-resistant and corrosion-resistant.
• More – They also can be used for reducing bore diameter or replacing worn-out original bushings on wheels.
• Function – The bushings can be used for different purposes, such as positioning, wear and vibration reduction, or to isolate the shaft from special media to increase the life of the shaft.

Specifications:

• Material: Sintered Bronze
• Bore Diameter: 10mm
• Outer Diameter: 16mm
• Total Length: 10mm

Package Contents:

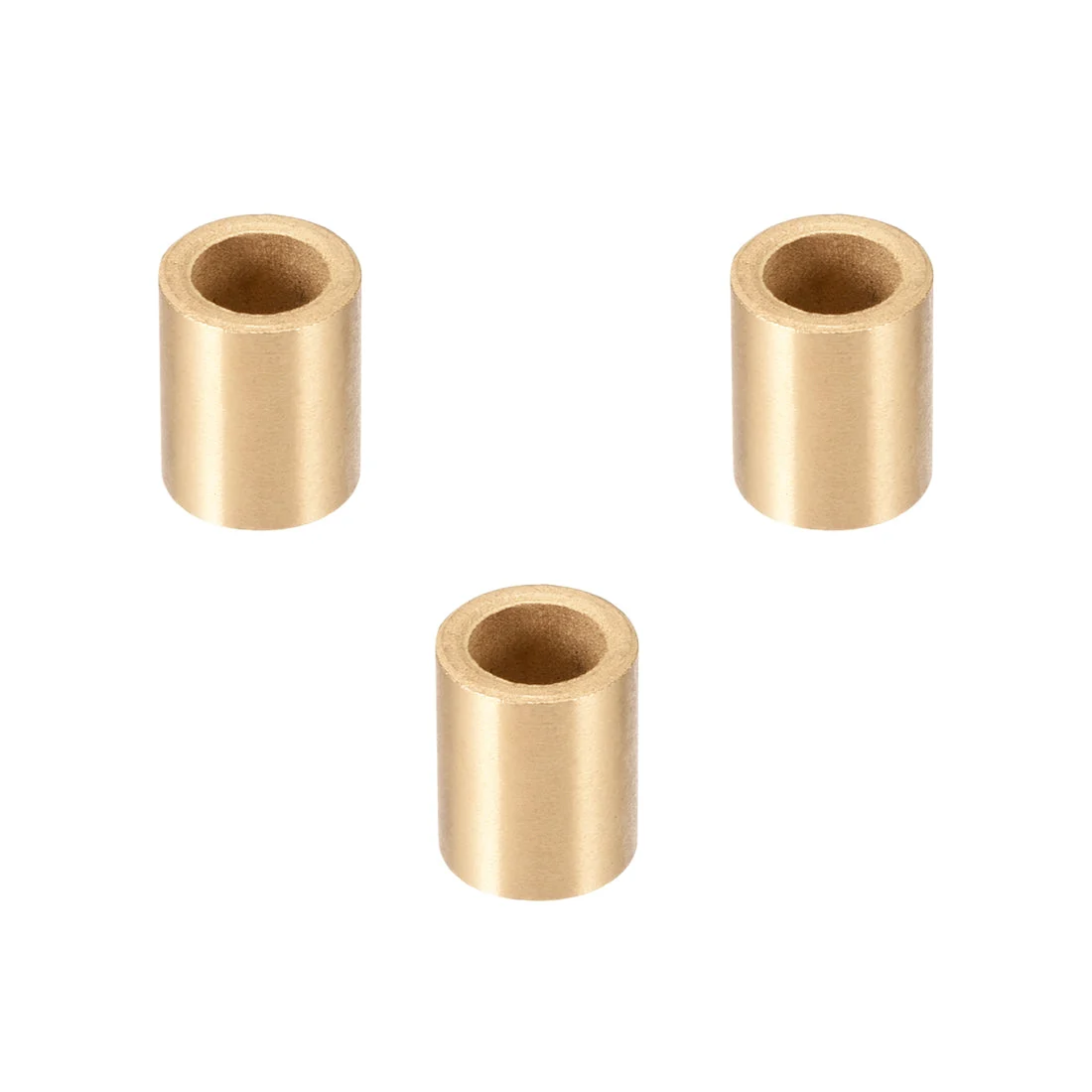

• 3 x Sleeve Bearings

Description:

1. Sleeve bearings are also known as plain bearings or bushings, mostly for guiding or reducing friction in linear applications. Oiled Bearing Sleeves have a small friction coefficient of about 0.12-0.18.
2. They are made of powder-metallurgical metal, which has a large working temperature range from -80 degrees Celsius to 120 degrees Celsius.
3. Bushings provide strong housing for a shaft or fastener. They also help to reduce bore diameter or to replace worn-out original bushings on wheels.
4. Sintered bronze bushings are most suitable for applications with rotating movements and where self-lubricating properties of the material.
5. Suitable for a vast variety of industrial equipment such as electrical equipment, household equipment, printing machinery, and machine tools.
