About this item

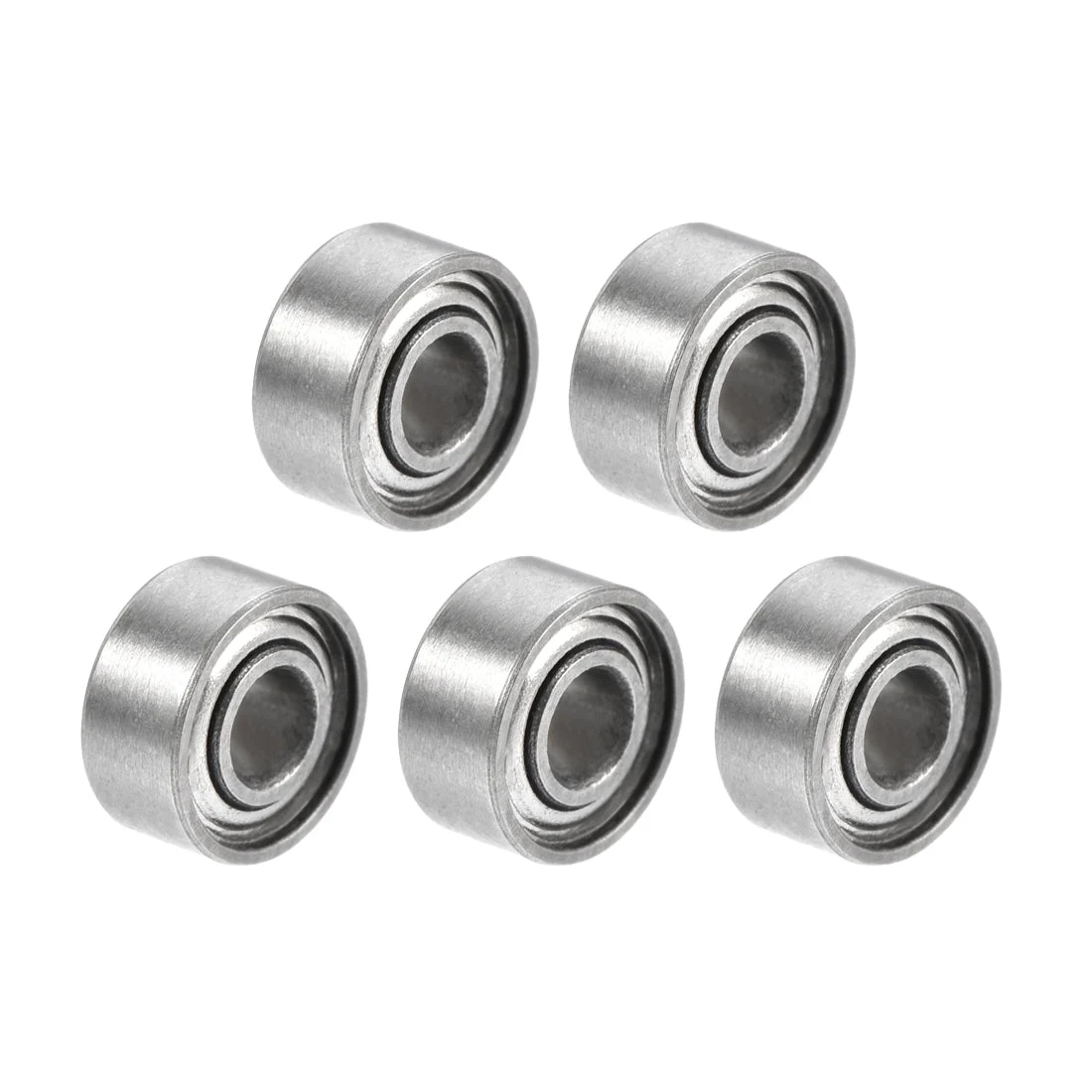

- S682ZZ (I.D.=2mm, O.D.=5mm, Thickness=2.3mm)
- S682ZZ bearings are shielded on both sides to keep lubricant in
- Stainless steel races for durability and corrosion resistance
- ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
- Static load rating of 36 newtons and dynamic load rating of 129.6 newtons
Note:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
Description:
-Single-row, pre-lubricated, normal accuracy.
-Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
-With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
-Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.
-Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Selection Guide:
Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) – Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: S682ZZ
Shield Type: Double Shielded
Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)
Cage Material: Stamping Steel
Inner Diameter (d): 2mm
Outer Diameter (D): 5mm
Thickness (B): 2.3mm
Dynamic Load Rating (Cr): 129.6 N
Static Load Rating (Cor): 36 N
Accuracy Class: P0 (ABEC1)
Noise Level: Z2
Number of Pack: 5 Pcs
