About this item

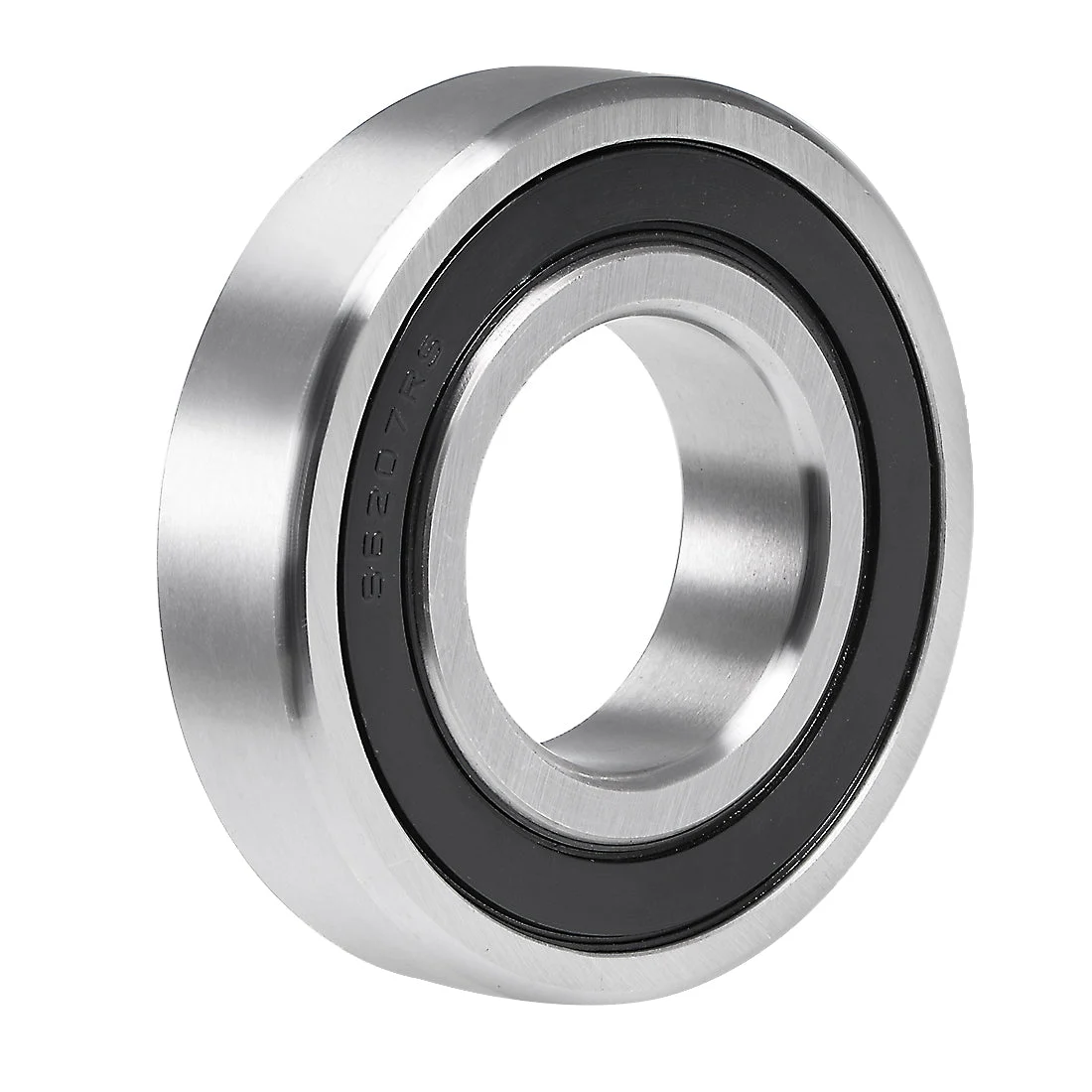

- S6207-2RS (I.D.=35mm, O.D.=72mm, Thickness=17mm)
- s6207-2rs bearings are sealed on BOTH SIDES to keep lubricant in
- Stainless steel races for durability and corrosion resistance
- ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
- Static load rating of 15400 newtons and dynamic load rating of 25700 newtons
NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
Description:
- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Stainless steel bearing features stronger rust and corrosion resistance ability.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Selection Guide:
Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.
Sealed (Designation SuffixRS/2RS) – Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model:S6207-2RS
Sealed Type: Double Sealed
Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)
Cage Material: 304 Stainless Steel (0Cr18Ni9)
Inner Diameter (d): 35mm
Outer Diameter (D): 72mm
Thickness (B): 17mm
Dynamic Load Rating (Cr): 25.7kN
Static Load Rating (Cor): 15.4kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 1 Pcs
