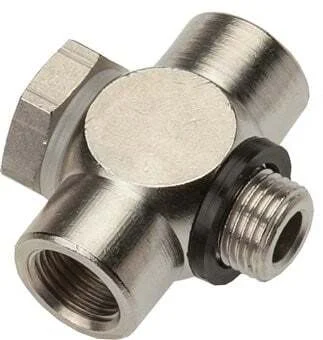

G3/8” Aluminum Tee Banjo Fitting with Male and Female Threads with O-ring [10 Pieces]

This aluminum tee banjo fitting is designed with two female threaded connections and one male threaded connection. Connection 1 has G 3/8 inch female threads. The banjo bolt with G 3/8 inch threads is suitable with this fitting. It has an O-ring for sealing. The operating pressure range is -0.99 to 15 bar (-14 to 218 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -15 to 70 °C (5 to 158 °F). The banjo bolt is not included.

Pros:

• It can be used for vacuum applications
• The male thread connection has an O-ring seal

Specifications

Thread : 3/8 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Aluminum
Fitting features : Vacuum
Min pressure (bar) : -0.99
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -15
Max temperature (°C) : 70
Type of sealing : O-ring
Model : Banjo
Material connection 1 : Aluminum
Material connection 2 : Aluminum
Material connection 3 : Aluminum
With drain : No
