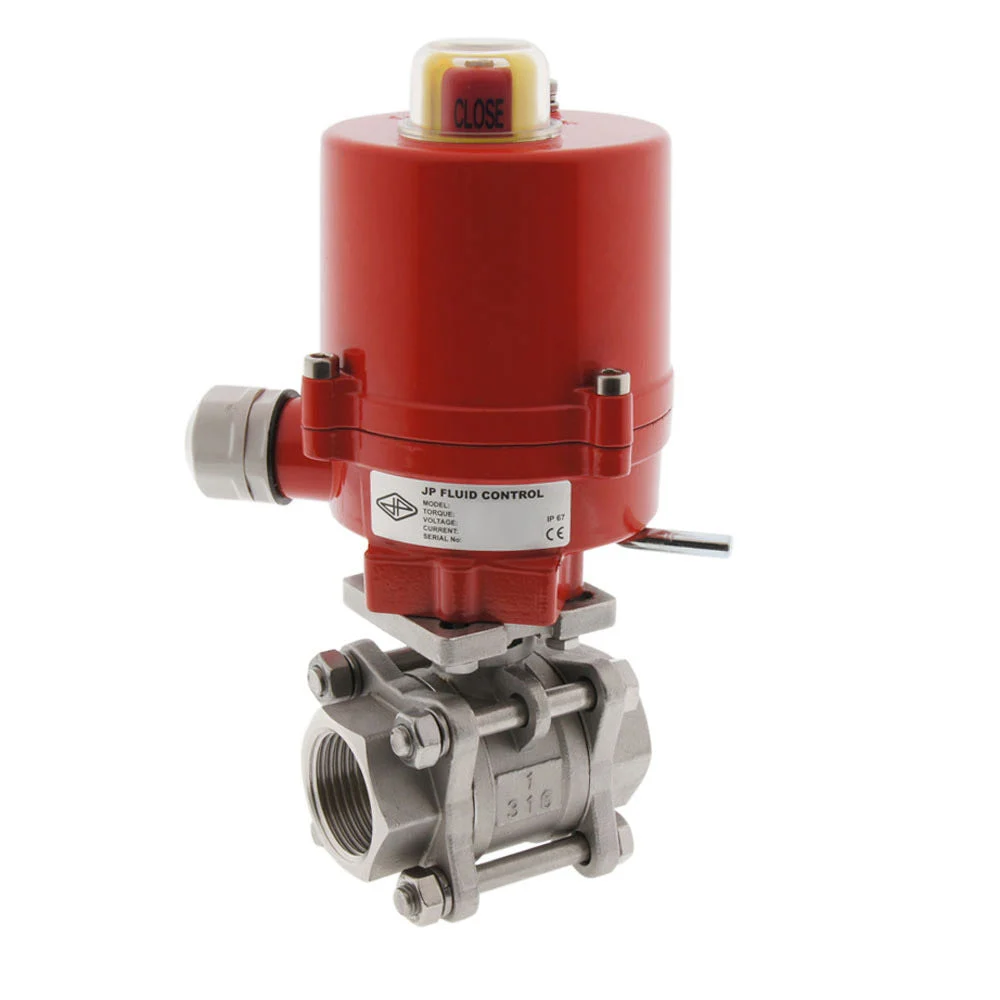

This strong and energy efficient 2-way electrical ball valve from Tameson can be used to automatically shut of pipes with gas or fluids. The valve has 1/2 inch pipe threads (internal thread, BSPP). The housing of the valve is made of stainless steel with a stainless steel ball and PTFE (teflon)/FKM sealing. The actuator is suitable for both 12 volt AC 50/60Hz (alternating current) and 12 volt DC (direct current). With switches on the circuit board, the actuator can be set for AC or DC. The factory default setting is direct current (DC). It is very imortant to set the actuator to AC, before using an AC power supply. The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 20 Nm torque. The valve rotates from 0 to 90 degrees in 4 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
Key benefits
- Robust stainless steel ball valve with 1/2 inch pipe threads
- Switching time only 4 seconds
- Strong IP67 actuator housing
- Both 12V AC and DC possible (set by switch)
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
Technical specifications
| Actuator | Ball Valve | ||
|---|---|---|---|
| Actuator ref: | AG-020-C | Ball Valve ref: | BL2SA3-012 |
| Voltage: | 12V DC/AC (50/60Hz) | Housing: | Stainless steel (AISI 316) |
| Nom./Max. Current: | 0.2/2.2 A | Ball: | stainless steel (AISI 316) |
| Protection: | IP67 | Seat rings: | PTFE (teflon)/FKM |
| Duty Cycle: | S2 30min. | Pipe threads: | G1/2″ BSP |
| Open/Close: | 4 s | Nominal Diameter: | 15mm (DN) |
| Amb. Temp.: | -10°C..50°C | Installation length: | 75 mm |
| Range: | 0-90° | Max pressure (@20°C): | 63 bar |
| Extra limit switches: | 2 | Function: | 2 way |
| Manual override: | Yes | Temp medium: | -20°C..130°C |
Dimensions
DimensionsL1=62mmL2=26mmL3=172mmL4=75mmL5=94mmL6=mm
Specifications
Connection size : 1/2 inch
Voltage : 12 V AC
Material : Stainless steel
Seal material : Teflon (PTFE)
Control signal : Three-point (open-close)
Max pressure difference (bar) : 63
Recommended for : Water,Air,Carbon dioxide,Dilute acids and bases,Strong acids and bases,Oil,Fuel,Solvents,Alcohols,Lubricant,Combustible gases,Sea water,Demineralized water,Vacuum
Operating time (s) : 4
Connection type : Inner thread cylindrical BSPP-G
Ball valve feature : Fast running,Manual override,End position feedback
Kv value [m3/h] : 20
Valve bore (mm) : 15
Max actuator torque (nm) : 20
Max temperature (°C) : 130
Min temperature (°C) : -20
Material quality : Stainless steel 316 (1.4408)
Degree of protection (IP) : IP67
Nominal power (W) : 2.4
Position feedback : Open & close limit switch
Manual override : Yes
Ground characteristic : Equal percentage
Adjustable operating range : Yes
Ambient temperature (°C) : -10 °C to 50 °C
Duty cycle : S2 30min
Frequency : 50/60 Hz
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 26.4
Position reporting signal : None
Spindle seal material : FKM (FPM)
Surface protection : Untreated
Transmission : With cogwheels
Vacuum (bar) : -0.9
With end contacts : Yes
Voltage : 12 V AC
