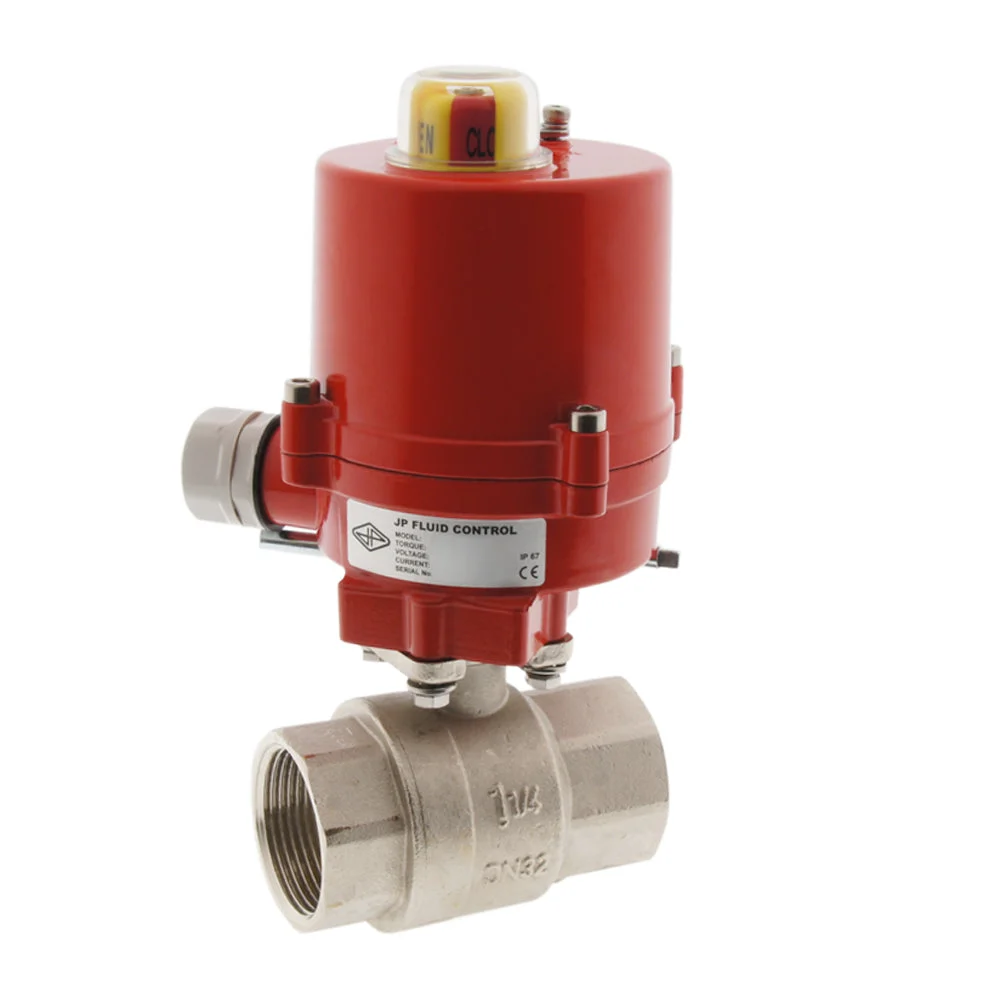

This strong and energy efficient 2-way electrical ball valve from Tameson can be used to automatically shut of pipes with gas or fluids. The valve has 2-1/2 inch pipe threads (internal thread, BSPP). The housing of the valve is made of brass with a hard chrome plated brass ball and PTFE (teflon)/FKM sealing. The actuator is suitable for both 24 volt DC (direct current) and 24 volt AC 50/60Hz (alternating current). With switches on the circuit board, the actuator can be set for AC or DC. The factory default setting is direct current (DC). The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 40 Nm torque. The valve rotates from 0 to 90 degrees in 8 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
Key benefits
- Approved for natural or liquid gas at max 5 bar and 60 °C (EN331 DVGW)
- Robust brass ball valve with 2-1/2 inch pipe threads
- Switching time only 8 seconds
- Strong IP67 actuator housing
- Both 24V AC and DC possible (set by switch)
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
Technical specifications
| Actuator | Ball Valve | ||
|---|---|---|---|
| Actuator ref: | AG-040-B | Ball Valve ref: | BL2BA-212 |
| Voltage: | 24V DC/AC (50/60Hz) | Housing: | Brass (CW 617N) |
| Nom./Max. Current: | 0.2/1.2 A | Ball: | hard chrome plated brass |
| Protection: | IP67 | Seat rings: | PTFE (teflon)/FKM |
| Duty Cycle: | S2 30min. | Pipe threads: | G2-1/2″ BSP |
| Open/Close: | 7 s | Nominal Diameter: | 65mm (DN) |
| Amb. Temp.: | -10°C..50°C | Installation length: | 165 mm |
| Range: | 0-90° | Max pressure (@20°C): | 30 bar |
| Extra limit switches: | 2 | Function: | 2 way |
| Manual override: | Yes | Temp medium: | -20°C..120°C |
Dimensions
DimensionsL1=62mmL2=26mmL3=220mmL4=165mmL5=94mmL6=mm
Specifications
Connection size : 2 1/2 inch
Voltage : 24 V DC
Material : Brass
Seal material : Teflon (PTFE)
Control signal : Three-point (open-close)
Max pressure difference (bar) : 30
Recommended for : Water,Air,Oil,Fuel,Lubricant,Vacuum
Operating time (s) : 8
Connection type : Inner thread cylindrical BSPP-G
Ball valve feature : Fast running,Manual override,End position feedback
Kv value [m3/h] : 450
Valve bore (mm) : 65
Max actuator torque (nm) : 40
Max temperature (°C) : 120
Min temperature (°C) : -20
Degree of protection (IP) : IP67
Nominal power (W) : 4.8
Position feedback : Open & close limit switch
Manual override : Yes
Ground characteristic : Equal percentage
Adjustable operating range : Yes
Ambient temperature (°C) : -10 °C to 50 °C
Duty cycle : S2 30min
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 28.8
Position reporting signal : None
Spindle seal material : FKM (FPM)
Surface protection : Nickel-plated
Transmission : With cogwheels
Vacuum (bar) : -0.9
With end contacts : Yes
Voltage : 24 V DC
