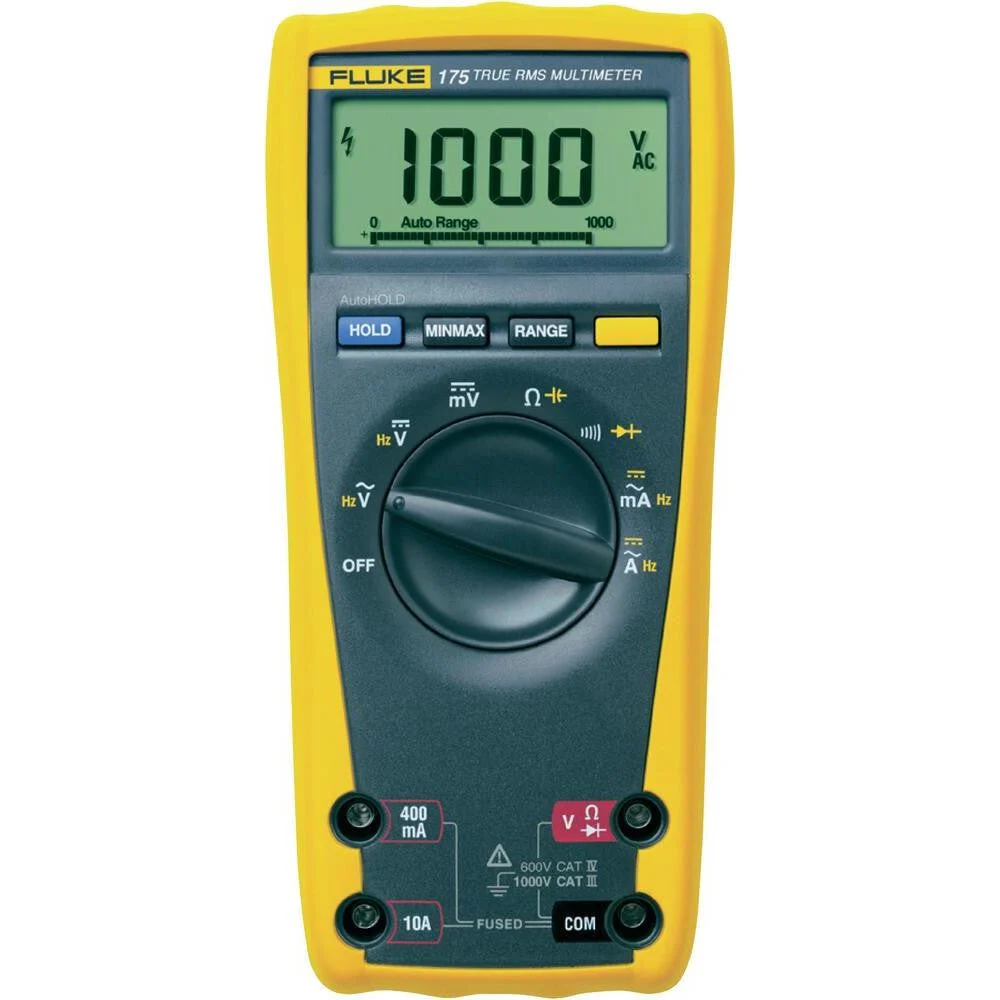

Fluke 175 Multimeter

The Fluke 175 is a highly accurate handheld multimeter with a 6000 count display. The instrument can measure voltage, current, resistance capacitance and frequency on top of this it has a true RMS function. Furthermore, there is a function for diode and continuity testing. The display is large, easy to read, and the multimeter has a folding stand at the back. Approximately 400 hours can be gotten out of the multimeter’s 9V battery. The Fluke 175 is rated as category CAT IV to 600 V and CAT III to 1000 V.

Pros:

• True-RMS can measure sinusoidal and non-sinusoidal AC waveforms.
• High quality

Cons:

• More expensive than others with similar specifications

Specifications

Indication : Digital
Our choice for : Professional standard multimeter
Measuring range selection : Automatic
Max. voltage measuring range, AC (V) : 1000
Lowest resolution, AC voltage : 0.1 mV
Max. voltage measuring range, DC (V) : 1000
Lowest resolution, DC voltage : 0.1 mV
Max. current measuring range, AC (A) : 10
Lowest resolution, AC current : 10 µA
Max. current measuring range, DC (A) : 10
Lowest resolution, DC current : 10 µA
Max. resistance measuring range (MOhm) : 50
Lowest resolution, resistance : 0.1 Ohm
Capacitance measurement : Yes
Max. capacitance measuring range (µF) : 9999
Lowest resolution, capacitance : 0.001 µF
Frequency measurement : Yes
Max. frequency measuring range (kHz) : 200
Lowest resolution, frequency : 0.01 Hz
Max. voltage measuring circuit category (V) : 600
Continuity test : Yes
Temperature measurement : No
Temperature measurement RTD : No
Temperature measurement TC : No
Data hold : No
Max. value storage : No
Min. value storage : No
Multiple display : No
Resistance test/diode test : Yes
Scaling bar graph lineair : Yes
Scaling bar graph logarithmic : No
True RMS measurement : Yes
With display backlight : No
Duty cycle measurements : No
Measured value memory : No
Interface : No
Bluetooth interface : No
Measuring circuit category : CAT IV
Milliohm measurement with 4 wire technique (Kelvin connection) : No
