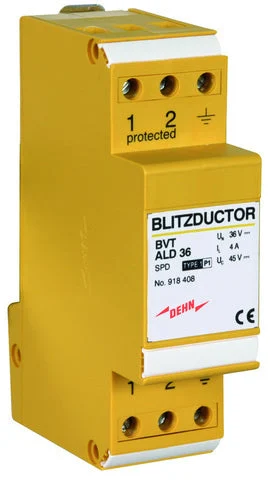

DEHN BLITZDUCTOR Combined distractor Data And M&R – 918408

Dehn BLITZDUCTOR VT combined disconnector data and m&r, rated voltage DC 36V, thunderstorm current surge (10/350) 5kA, rated discharge surge current (8/20) 20kA, rated load current 7A, DIN rail 35mm, connection 1 terminal, max continuous voltage AC 60V, max continuous voltage DC 45V, safety level 80V.

Specifications

Nominal voltage AC (V) : 0 V to 0 V
Nominal voltage DC (V) : 36 V to 36 V
Max. continuous voltage AC (V) : 60
Max. continuous voltage DC (V) : 45
Lightning impulse current (10/350 µs) (kA) : 5
Nominal discharge surge current (8/20) (kA) : 20
Nominal load current (A) : 7
Voltage protection level (V) : 80
Voltage protection level core/core (V) : 60
Voltage protection level core/earth (V) : 650
Limiting frequency (MHz) : 60
Mounting method : DIN rail (top hat rail) 35 mm
Connection 1 : Clamp
Pro-active thermo-control : Yes
With remote signalling contact : No
Explosion-tested version : Yes
