DEHN BLITZDUCTOR Surge Protector For Data/M&R – 920345

Dehn BLITZDUCTOR XT surge protector v data/m&r, rated voltage DC 48V, DIN/G-rail, rated voltage AC 48V, connection 1 terminal, max. Continuous voltage AC 38.1V, max. Continuous voltage DC 48V, rated discharge surge current (8/20) 20kA, safety level core/earth 550V.

Specifications

Nominal voltage AC (V) : 48 V to 48 V
Nominal voltage DC (V) : 48 V to 48 V
Max. continuous voltage AC (V) : 38.1
Max. continuous voltage DC (V) : 54
Nominal discharge surge current (8/20) (kA) : 20
Lightning impulse current (10/350 µs) (kA) : 10
Nominal load current (A) : 1
Voltage protection level core/core (V) : 70
Voltage protection level core/earth (V) : 550
Limiting frequency (MHz) : 8.7
Mounting method : On basic element
Connection 1 : Screw terminal
Pro-active thermo-control : Yes
With remote signalling contact : No
Explosion-tested version : Yes
Signal disconnection : No
Number of conductors (without earthing) : 4
Earthing via : DIN rail (top hat rail)

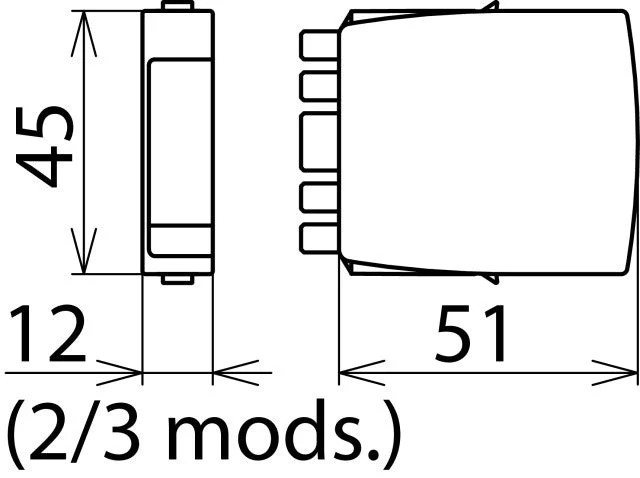

Assembly width (mm) : 12
Degree of protection (IP) : IP20
