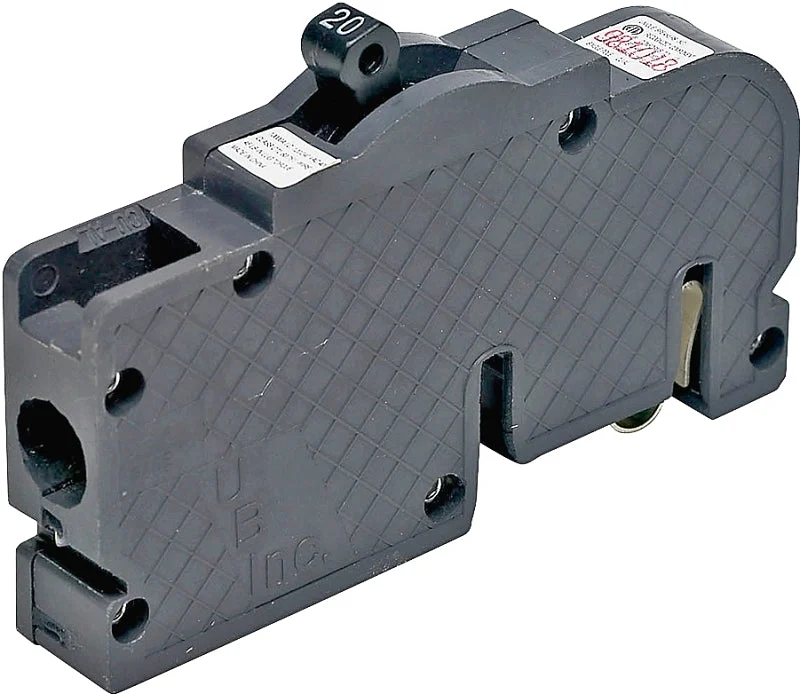

Zinsco UBIZ20 Circuit Breaker, Type UBIZ, 20 A, 1 -Pole, 120/240 V, Plug Mounting

Replacement for Zinsco Q Series. Requires one 3/4 in space. HACR-(heating and air conditioning) rated. Tested and certified in accordance with the National Electric Code and conforms to the ANSI/UL Standard 489, 9th Edition. 120 VAC, 10,000 AIC. Carded.
Unit: CD 1
UPC: 094925003017
Model Number: UBIZ20

Features

• HACR/SWD rated
• Available in thick, thin and twin designs

Additional Information

• Actuator Type: Magnetic Thermal
• Current Rating: 20 A
• Dimensions: 4.81 in L x 0.75 W x 2.53 H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Operating Frequency: 50/60 Hz
• Suitable for: Zinsco Q20 Series Load Centers
• Terminal Type: Lug
• Type: Type UBIZ
• Voltage Rating: 120/240 V
• Wire Size: 14 to 6 AWG
