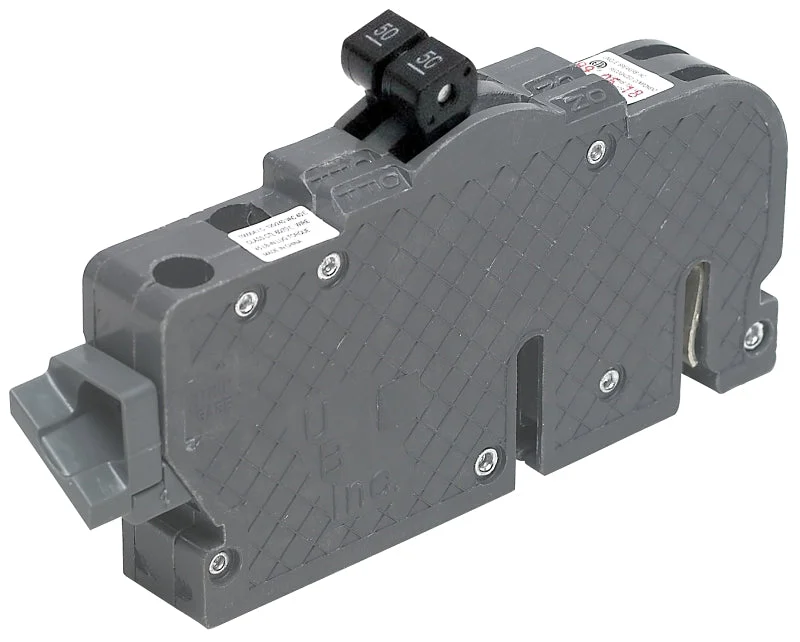

HACR rated replacement for Zinsco. 120/240 VAC, 10,000 AIC. One 3/4 in space.
Features
- HACR/SWD rated
- Available in thick, thin and twin designs
Additional Information
- Current Rating: 60 A
- Dimensions: 5.63 in L x 0.75 W x 2.53 H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Poles: 2
- Operating Frequency: 50/60 Hz
- Suitable for: Zinsco RC3860 Series Load Centers Including Sub-Fed Panel Boxes Large Central Air Conditioners and Electrical Additions
- Trip Type: Standard
- Type: Type UBIZ
- Voltage Rating: 120/240 V
- Wire Size: 4 to 3 AWG
