About this item
- 【FEATURE】- DC 12V 25N Force 10mm Stroke Push Type,Tubular Solenoid Electromagnet
- 【GOOD DESIGN】- Push Type, linear motion, plunger spring return, DC solenoid electromagnet.
- 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
- 【NOTED】- As an actuating element of anmation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
- 【APPLICATION】- DC Tubular solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
Description:

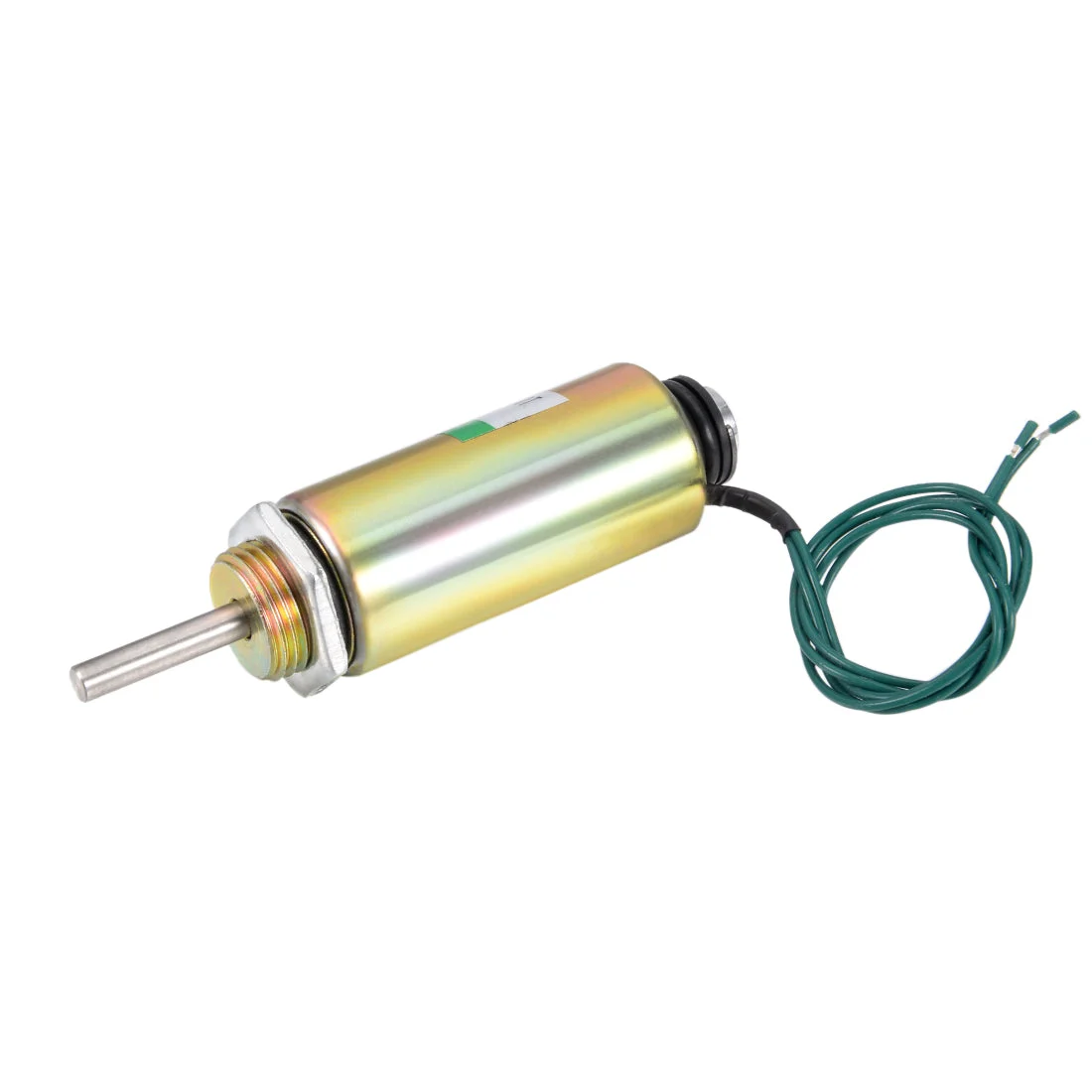

Push Type, linear motion, plunger spring return, DC solenoid electromagnet.
Support DC 12V voltage, high power, push type, linear motion, is easy to install.
DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.
Specification:
Model: XRN-25x50T
Type: Push Type
Material: Metal;
Net Weight: 186g
Main Color: Silver Tone
Rated Voltage: DC 12V;
Force: 25N
Travel: 10mm;
Thread Dia: M18
Plunger Bar Dia.: 5mm/0.2″;
Total Length: 95mm/3.74″;
Cable Length: 270mm/10.63″
Size: 53 x 25mm/2.09″ x 0.98″(L * D);
Package Content:
1 x DC Solenoid Electromagnet
Note:
Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using eelectricity, so as not to damaged the electromagnet.
