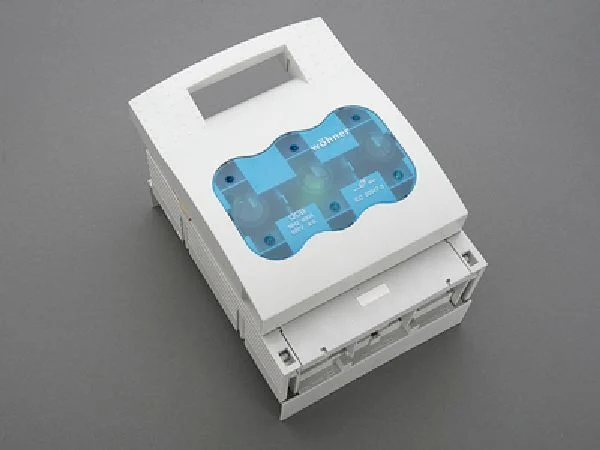

Wohner QUADRON pattern load breaker, construction size fuse inserts NH2, equipment pattern load breaker with safety load switch, rated operating current Ie 400A, 3 poles, degree of protection (IP) IP30, degree of protection (NEMA) other, top connection, enclosure width 210mm.
Specifications
Number of poles : 3
Rated operation current Ie (A) : 400
Max. rated operation voltage Ue AC (V) : 690
Rated insulation voltage Ui (V) : 800
Construction size fuse inserts : NH2
With error protection : No
Housing width (mm) : 210
Housing depth (mm) : 145
Height of housing (mm) : 288
Degree of protection (IP) : IP20
Degree of protection (NEMA) : Other
