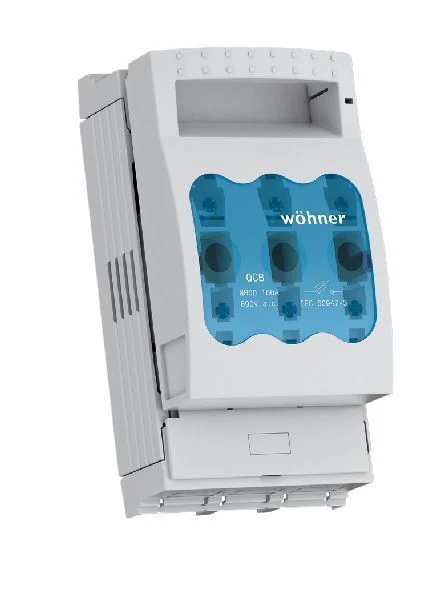

Wohner QUADRON pattern load breaker, construction size fuse inserts NH00, equipment pattern load breaker with load breaker, rated operating current Ie 160A, 3 poles, degree of protection (IP) IP41, degree of protection (NEMA) other, top connection, housing width 106mm, contact breaker double.
Specifications
Number of poles : 3
Rated operation current Ie (A) : 160
Max. rated operation voltage Ue AC (V) : 690
Rated insulation voltage Ui (V) : 800
Construction size fuse inserts : NH00
With error protection : No
Housing width (mm) : 106
Housing depth (mm) : 97
Height of housing (mm) : 200
Degree of protection (IP) : IP20
Degree of protection (NEMA) : Other
