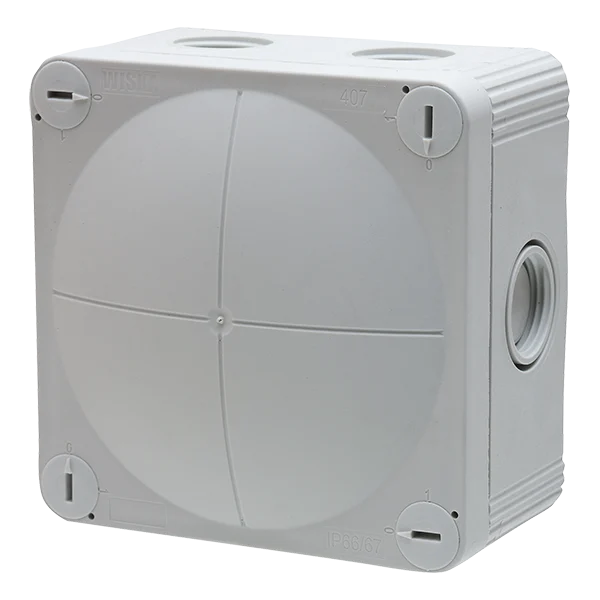

This cable box is suitable for wall or ceiling mounting. The conductors may have a maximum cross-sectional area of 4mm². The surface-mounted junction box measures 95x95mm and is made of light gray plastic. Furthermore, this junction box features wire terminals.
Specifications
Max. conductor cross section (mm²) : 4
Shape : Square
Mounting method : Universal
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 95
Width (mm) : 95
Depth (mm) : 60
Tackable : No
Number of inlets : 7
Type of housing feed-through : Thread and closing membrane
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP67
Cover model : Other
Cover attachment : Screwed
Sealable : No
Rated insulation voltage Ui (V) : 400
Circuit integrity : None
With screening : No
Weatherproof : Yes
Working temperature (°C) : -30 °C to 100 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
