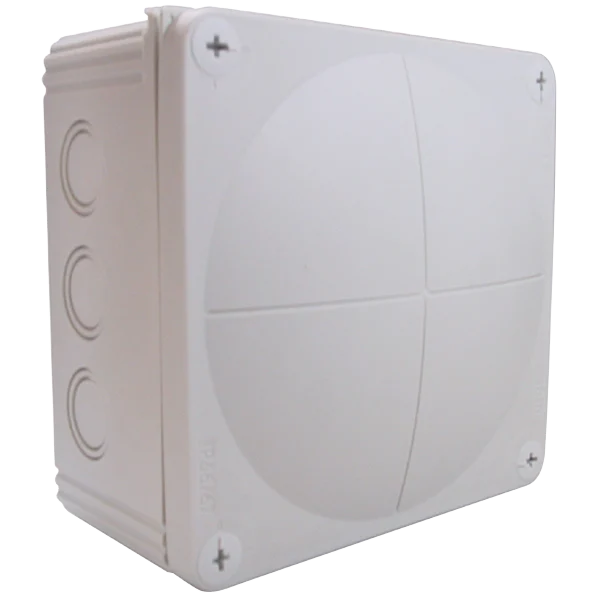

Wiska COMBI surface mount box wall/ceiling, plastic, gray, (LxWxH) 140x140x68mm, depth 72mm, universal, square, max. Conductor cross-section 10mm², rated insulation voltage Ui 690V, for pipe diameter other, housing penetration type breakout port, rear entry, 10 entries.
Specifications
Max. conductor cross section (mm²) : 10
Equipped with : None
Shape : Square
Mounting method : Universal
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 140
Width (mm) : 140
Depth (mm) : 82
Tackable : No
Number of inlets : 10
Type of housing feed-through : Preembossing
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP67
Cover model : Other
Cover attachment : Screwed
Sealable : No
Rated insulation voltage Ui (V) : 690
Circuit integrity : None
With screening : No
Weatherproof : Yes
Working temperature (°C) : -5 °C to 60 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
