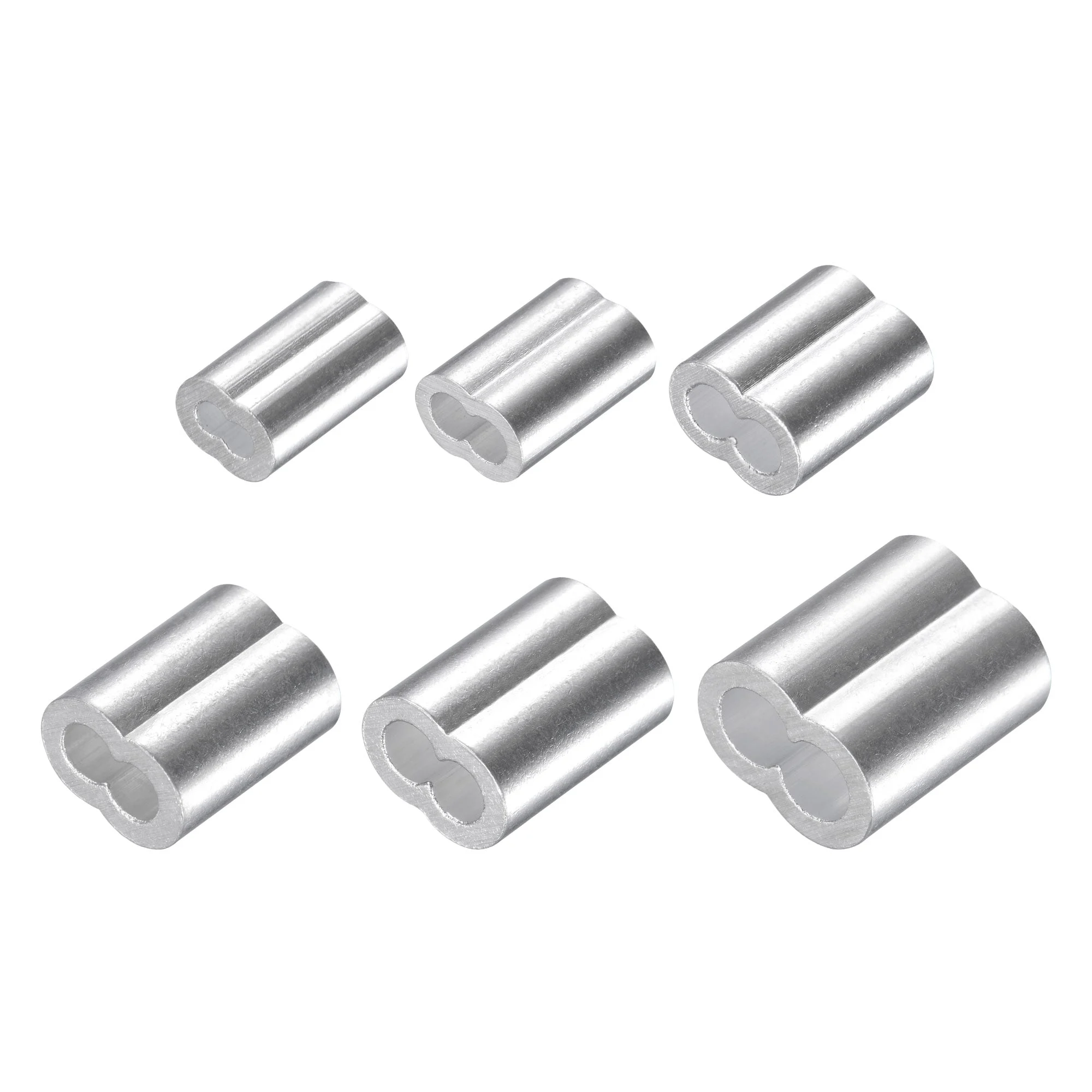

Wire Rope Aluminum Crimping Loop Sleeve Assortment Kit for 1.2/1.5/2/2.5/3/4mm Dia., Cable Crimp Double Hole Ferrule Clip Fittings 210in1 Set

About this item

• [Specification] – Fit for Rope Diameter: 1.2mm/0.05″, 1.5mm/0.06″, 2mm/0.08″, 2.5mm/0.1″, 3mm/0.12″, 4mm/0.16″; Package Includes: 50 x 1.2mm Sleeves, 50 x 1.5mm Sleeves, 50 x 2mm Sleeves, 30 x 2.5mm Sleeves, 20 x 3mm Sleeves, 10 x 4mm Sleeves
• [Characteristic] – Made of aluminum with characteristics of corrosion resistance, durable and long service life
• [Function] – The aluminum double-hole crimping loop sleeve is used to fix the rope and reduce the terminal pressure
• [Easy to Use] – Pass the wire rope through the sleeve hole, then use a hammer to flatten it or tighten it with pliers
• [Application] – The wire rope crimping loop sleeve kit is widely used in various fields for fixing wire ropes, such as clothes lines fixing, indoor and outdoor hanging, signs hanging, engineering hoisting machinery, power equipment, land port loading and unloading, ship accessories, etc

Features:
Made of aluminum with characteristics of corrosion resistance, durable and long service life.
The aluminum double-hole crimping loop sleeve is used to fix the rope and reduce the terminal pressure.
Easy to use; pass the wire rope through the sleeve hole, then use a hammer to flatten it or tighten it with pliers.
The wire rope crimping loop sleeve kit is widely used in various fields for fixing wire ropes, such as clothes lines fixing, indoor and outdoor hanging, signs hanging, engineering hoisting machinery, power equipment, land port loading and unloading, ship accessories, etc.
Note: Please allow 1-2mm error due to manual measurement.
Specifications:
Color: Silver
Material: Aluminum
Fit for Rope Diameter: 1.2mm/0.05″, 1.5mm/0.06″, 2mm/0.08″, 2.5mm/0.1″, 3mm/0.12″, 4mm/0.16″
Crimping Loop Inner Size
Size 1: 2.8×1.4mm / 0.11″x0.06″
Size 2: 3.7×1.6mm / 0.15″x0.06″
Size 3: 5.2×2.4mm / 0.2″x0.09″
Size 4: 6x3mm / 0.24″x0.12″
Size 5: 6.8×3.5mm / 0.27″x0.14″
Size 6: 9.5×4.8mm / 0.37″x0.19″
Crimping Loop Overall Size
Size 1: 9×5.3×3.8mm / 0.35″x0.21″x0.15″
Size 2: 9x6x4mm / 0.35″x0.24″x0.16″
Size 3: 9×7.4×4.8mm / 0.35″x0.29″x0.19″
Size 4: 12×9.2x6mm / 0.47″x0.36″x0.24″
Size 5: 14x10x6.8mm / 0.55″x0.39″x0.27″
Size 6: 16x13x8.4mm / 0.63″x0.51″x0.33
Package Includes:
50 x 1.2mm Sleeves
50 x 1.5mm Sleeves
50 x 2mm Sleeves
30 x 2.5mm Sleeves
20 x 3mm Sleeves
10 x 4mm Sleeves
