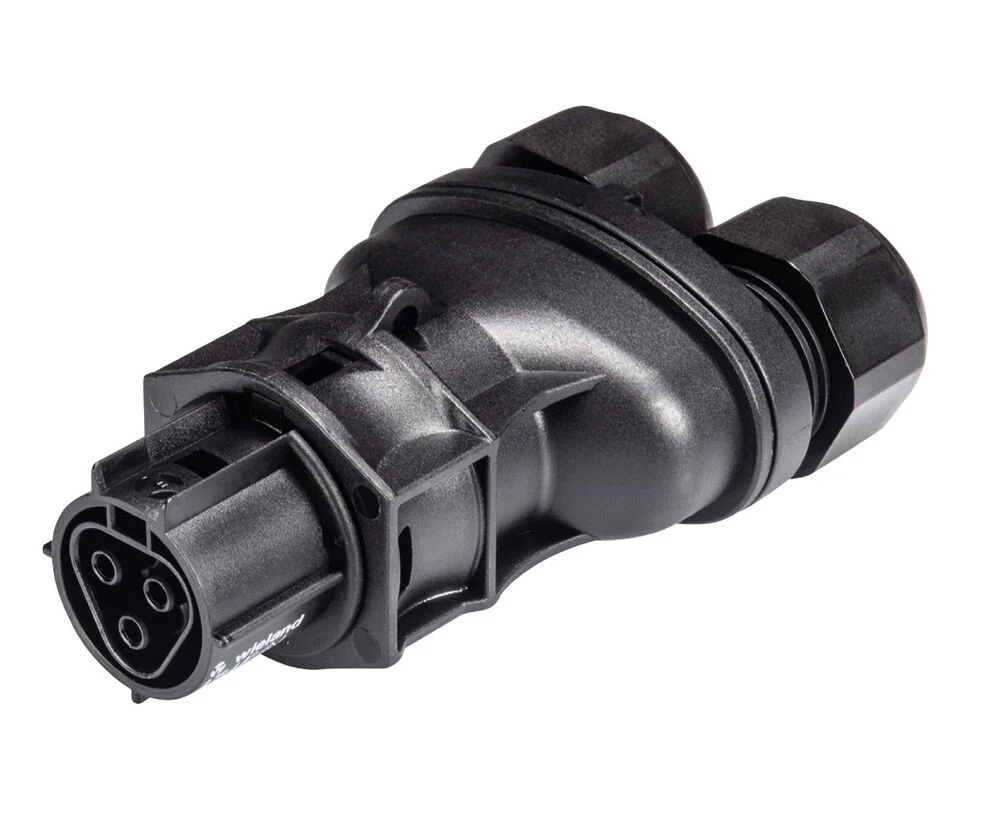

The Wieland RST connector is designed for plug-in building installation, with dimensions of 59x38x96mm. It has a contrast plug (female) design, with black coding/contact insert. The connector also employs pole marking L. N. PE. This connector uses a screw connection method, with connection cross-sections for solid wires ranging from 0.75mm² to 6mm², as well as for flexible wires from 0.75mm² to 6mm². The connector is 3-pole, and the RST20I3 cable connector is a 2-way, female, black connector, suitable for 10-14mm² cross-sectional area.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Connection type : Screw connection
Model : Bus
Cable diameter (mm) : 10 mm to 14 mm
Connection cross section (fine-strand) (mm²) : 0.75 mm² to 6 mm²
Connection cross section (solid-core) (mm²) : 0.75 mm² to 6 mm²
Number of connections per pole : 1
Pole codification : L, N, PE
Mechanical coding : Yes
Color coding/contact insert : Black
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.516
Contact material : CuZn
Surface treatment contacts : Silver-plated
Pollution degree : 2
Continuity resistor (mOhm) : 3
Rated surge voltage (kV) : 4
Length (mm) : 96
Height (mm) : 38
Width (mm) : 59
