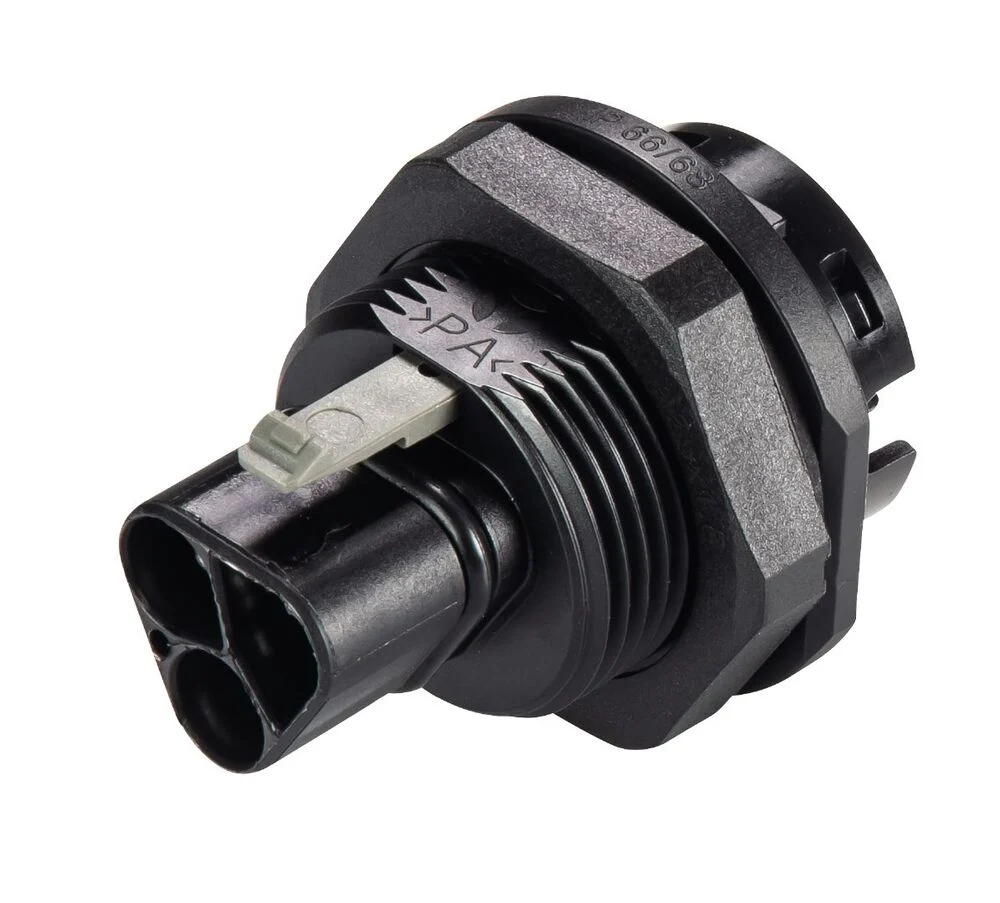

The Wieland RST connector is designed for easy building installations and features a pluggable male design. Its dimensions are 35x35x44.6mm and it comes with a black encoded contact insert. Notably, it incorporates a spring clamp connection system. This connector allows a solid connection cross-section ranging from 0.5 to 2.5mm² and a flexible connection cross-section between 0.5 – 1.5mm². Moreover, it maintains a pole marking of L., N., and PE and comprises 3 poles. The RST20I3 model is a standard M25 male connector offered in black color.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : Other
Connection type : Spring clamp connection
Model : Plug
Connection cross section (fine-strand) (mm²) : 0.5 mm² to 1.5 mm²
Connection cross section (solid-core) (mm²) : 0.5 mm² to 2.5 mm²
Number of connections per pole : 2
Pole codification : L, N, PE
Mechanical coding : Yes
Color coding/contact insert : Black
Locking mechanism : Integrated in plug-in connector
With strain relief : No
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Contact material : CuZn
Surface treatment contacts : Silver-plated
Pollution degree : 2
Continuity resistor (mOhm) : 3
Rated surge voltage (kV) : 4
Length (mm) : 44.6
Height (mm) : 35
Width (mm) : 35
