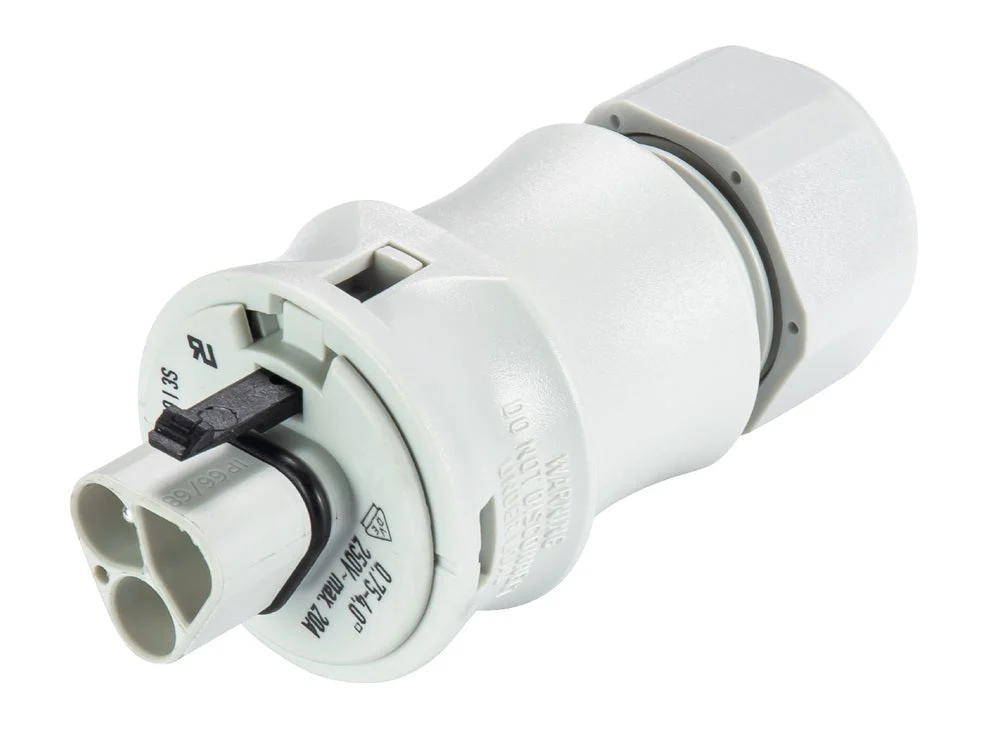

Wieland RST Classic Connector Male – 96.032.4153.0

This is a Wieland RST connector for pluggable building installation, with dimensions of 34.6×34.6×80.4mm. The design is a male plug, with unspecified coding/contact insert. It features L. N. PE pole marking and a screw connection method. The connector has 3 poles, with 1 connection per pole. The level of protection (IP) is unspecified, and the contact material used is CuZn. This RST20I3 cable connector is grey with the model number 41913.

Specifications

Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : Other
Connection type : Screw connection
Model : Plug
Number of connections per pole : 1
Pole codification : L, N, PE
Mechanical coding : Yes
Color coding/contact insert : Other
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Contact material : CuZn
Surface treatment contacts : Silver-plated
Pollution degree : 2
Continuity resistor (mOhm) : 3
Rated surge voltage (kV) : 4
Length (mm) : 80.4
Height (mm) : 34.6
Width (mm) : 34.6
