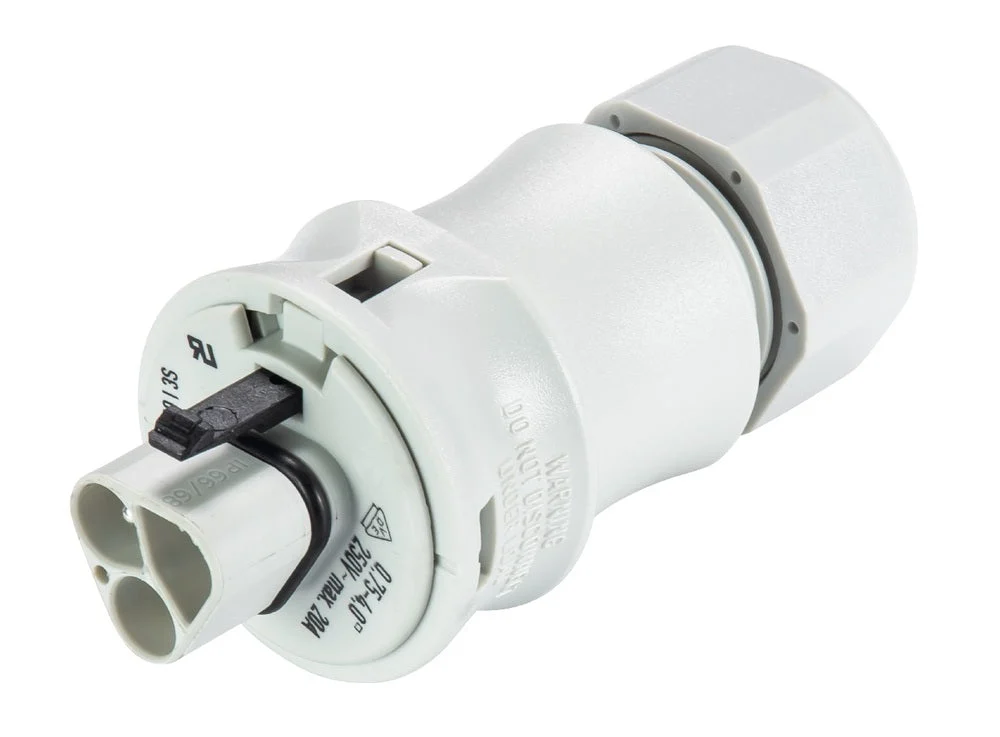

The Wieland RST connector is a plug-in type designed for building installation. With dimensions of 34.6×34.6×80.4mm, it is a male-type connector with a unique coding or contact insert. It is fitted with pole markings L. N. PE and utilizes a spring clamp connection method. It has three poles, with two connections per pole. Its specific degree of protection (IP) is not specified. The contact material is cuZn. This is the RST20I3 cable plug male grey spring clamp that fits 6-10mm².
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : Other
Connection type : Spring clamp connection
Model : Plug
Number of connections per pole : 2
Pole codification : L, N, PE
Mechanical coding : Yes
Color coding/contact insert : Other
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Contact material : CuZn
Surface treatment contacts : Silver-plated
Pollution degree : 2
Continuity resistor (mOhm) : 3
Rated surge voltage (kV) : 4
Length (mm) : 80.4
Height (mm) : 34.6
Width (mm) : 34.6
