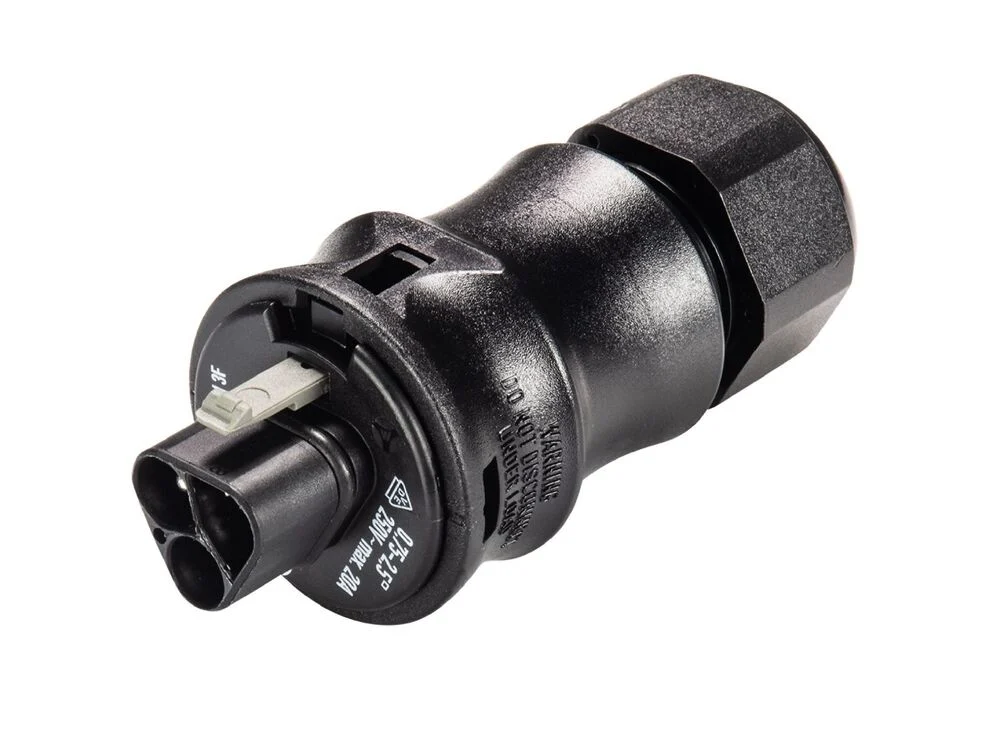

The Wieland RST connector is a male plug designed for use with pluggable building installations. It has dimensions of 34.6×34.6×80.4mm and features a black coding/contact insert. The connector has three poles, and allows for two connections per pole. It uses a spring clamp connection method and has a contact material of copper-zinc (cuZn). The pole marking is L. N. PE. The protection degree (IP) is not specified. Its cable connection is designed for a 6-10mm² cross-section.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : Other
Connection type : Spring clamp connection
Model : Plug
Number of connections per pole : 2
Pole codification : L, N, PE
Mechanical coding : Yes
Color coding/contact insert : Black
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Contact material : CuZn
Surface treatment contacts : Silver-plated
Pollution degree : 2
Continuity resistor (mOhm) : 3
Rated surge voltage (kV) : 4
Length (mm) : 80.4
Height (mm) : 34.6
Width (mm) : 34.6
