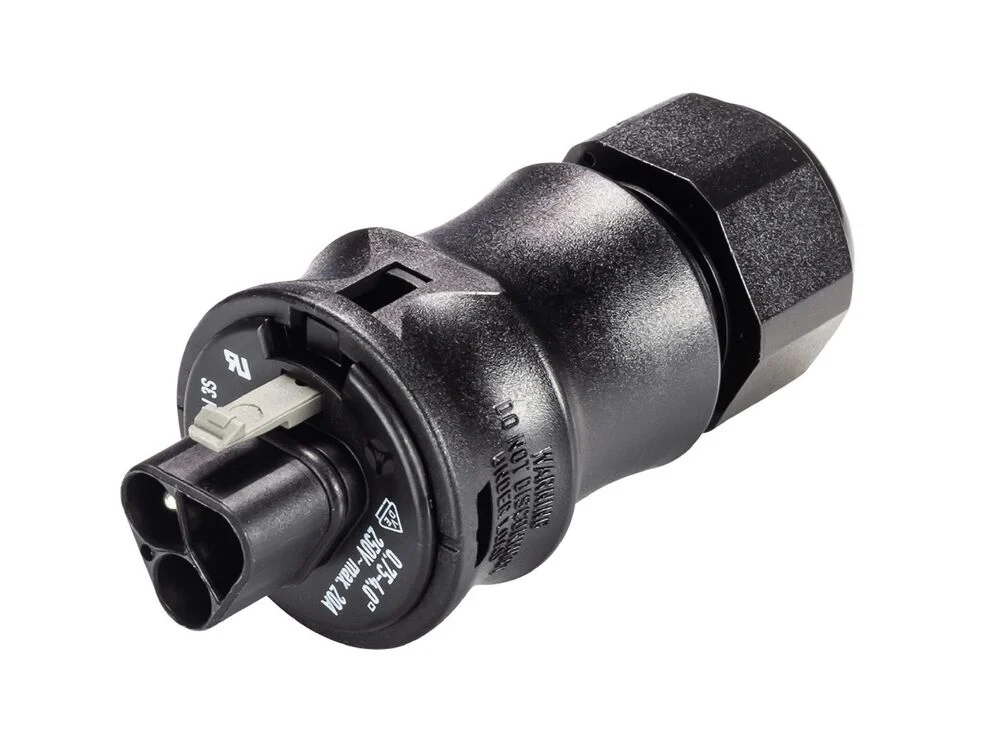

The Wieland RST connector is designed for plug-in building installations with dimensions 34.6×34.6×80.4mm. It is a male plug, with a black-coded contact insert and a pole marking of L. N. PE. The connector employs a screw connection method and has three poles with one connection per pole. Although the degree of protection (IP) is unspecified, the contact material is made of copper-zinc alloy. The product code for this item is RST20I3 KABELSTEKER MALE ZWART 40822.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : Other
Connection type : Screw connection
Model : Plug
Number of connections per pole : 1
Pole codification : L, N, PE
Mechanical coding : Yes
Color coding/contact insert : Black
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Contact material : CuZn
Surface treatment contacts : Silver-plated
Pollution degree : 2
Continuity resistor (mOhm) : 3
Rated surge voltage (kV) : 4
Length (mm) : 80.4
Height (mm) : 34.6
Width (mm) : 34.6
