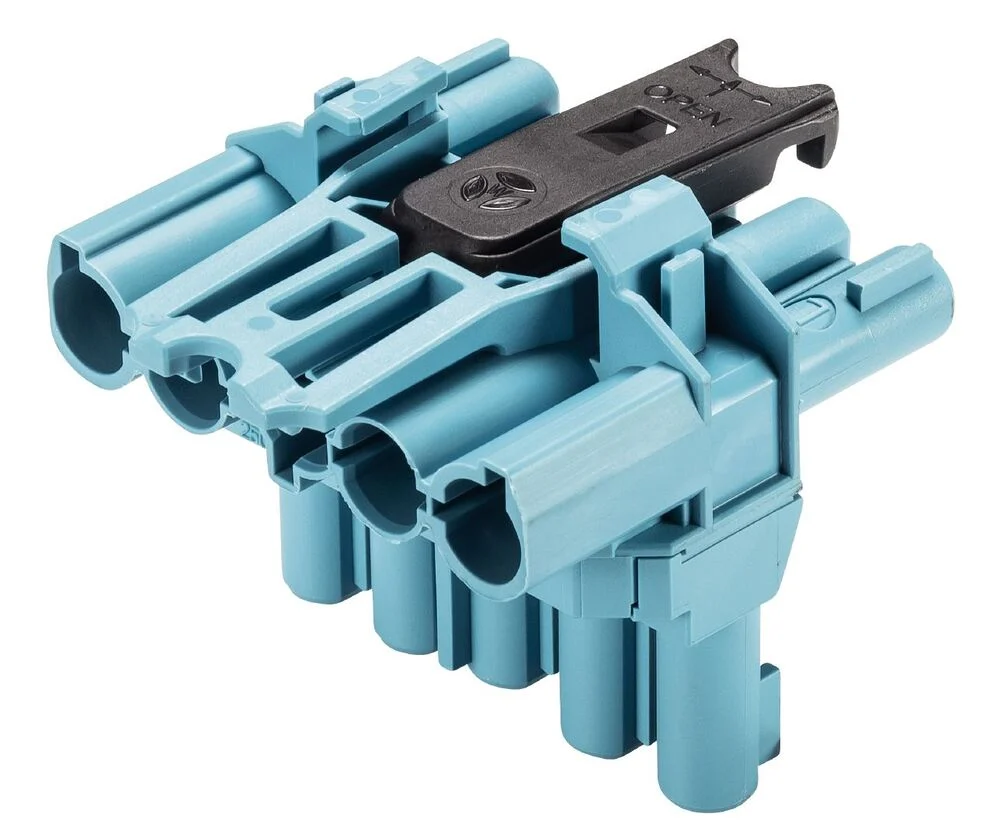

Wieland GST18I5VK2P1TB V PB02 Classic T-Distributor – 92.050.3453.0

The Wieland GST18i5 is a plug-in building installation distributor, with compact dimensions of 47.9mm x 43mm x 44mm. It features a pole marking system with L. N. PE. D1. D2, and uses a different type of coding/contact insert. This T-distributor type has 2 outlets and 5 poles, with one input. The device is rated with an IP20 protection degree, which means it’s capable of tolerating a constant temperature of up to 100°C. It comes in a pastel blue shade.

Specifications

Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 5
Degree of protection (IP) : IP20
Number of inputs : 1
Number of outputs : 2
Phase pickup : L1
Pole codification : L, N, PE, D1, D2
Mechanical coding : Yes
Color coding/contact insert : Other
Color of the separate adapter piece : Black
Locking mechanism : Integrated in plug-in connector
Halogen free : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Fire load (kWh) : 0.142
Contact material : CuZn
Surface treatment contacts : Tinned
Pollution degree : 2
Rated surge voltage (kV) : 4
Length (mm) : 44
Height (mm) : 43
Width (mm) : 47.9
Type of distributor : T-distributor
Type of integrated switching : Other
Mounting possibility : Integrated
