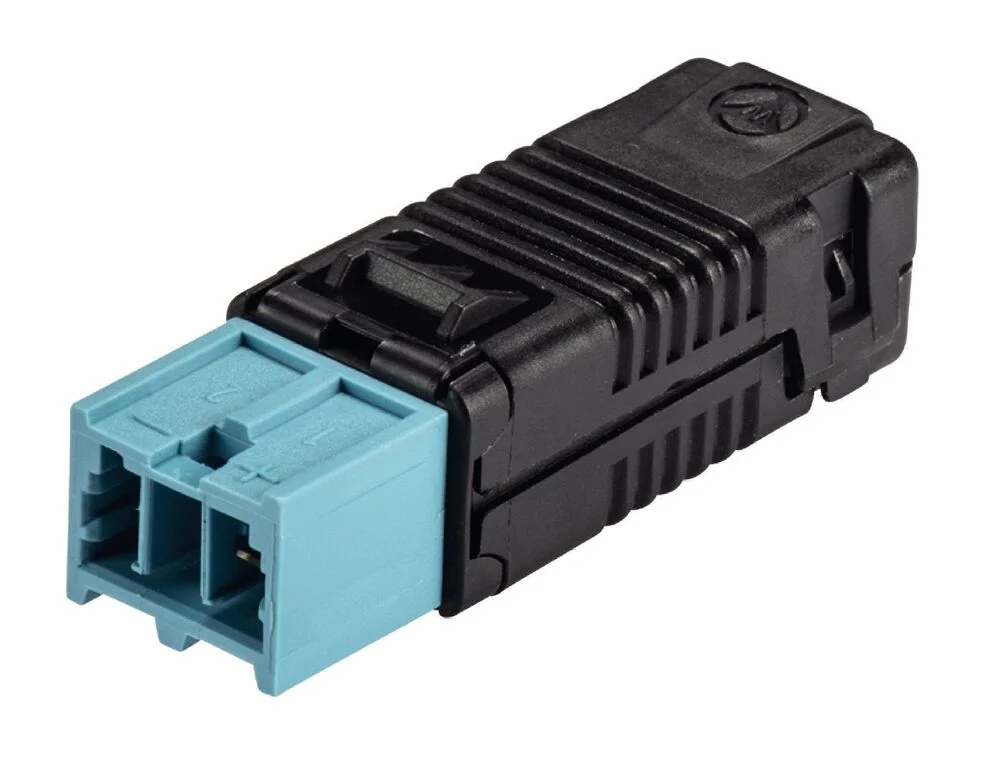

The Wieland BST14 is a plug-in building installation connector, with dimensions measuring 15.2×14.4x47mm. The connector pattern is male, with the coding and contact insert classified as other. This device features a pole marking of 1+. 2-, a spring clamp connection style, and a solid connection cross-section range of 0.25 – 0.75mm². It is a two-pole connector that can accommodate a cable diameter of 5.5 – 6.5mm. It is available in black.
Specifications
Rated voltage (V) : 50
Rated current (A) : 3
Number of poles : 2
Degree of protection (IP) : IP20
Connection type : Spring clamp connection
Model : Plug
Cable diameter (mm) : 5.5 mm to 6.5 mm
Connection cross section (solid-core) (mm²) : 0.25 mm² to 0.75 mm²
Number of connections per pole : 1
Pole codification : 1+, 2-
Mechanical coding : Yes
Color coding/contact insert : Other
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.034
Contact material : Other
Surface treatment contacts : Gilt
Pollution degree : 2
Rated surge voltage (kV) : 0.8
Length (mm) : 47
Height (mm) : 14.4
Width (mm) : 15.2
