Wieland Gesis Classic T-Distributor – 92.040.1053.1

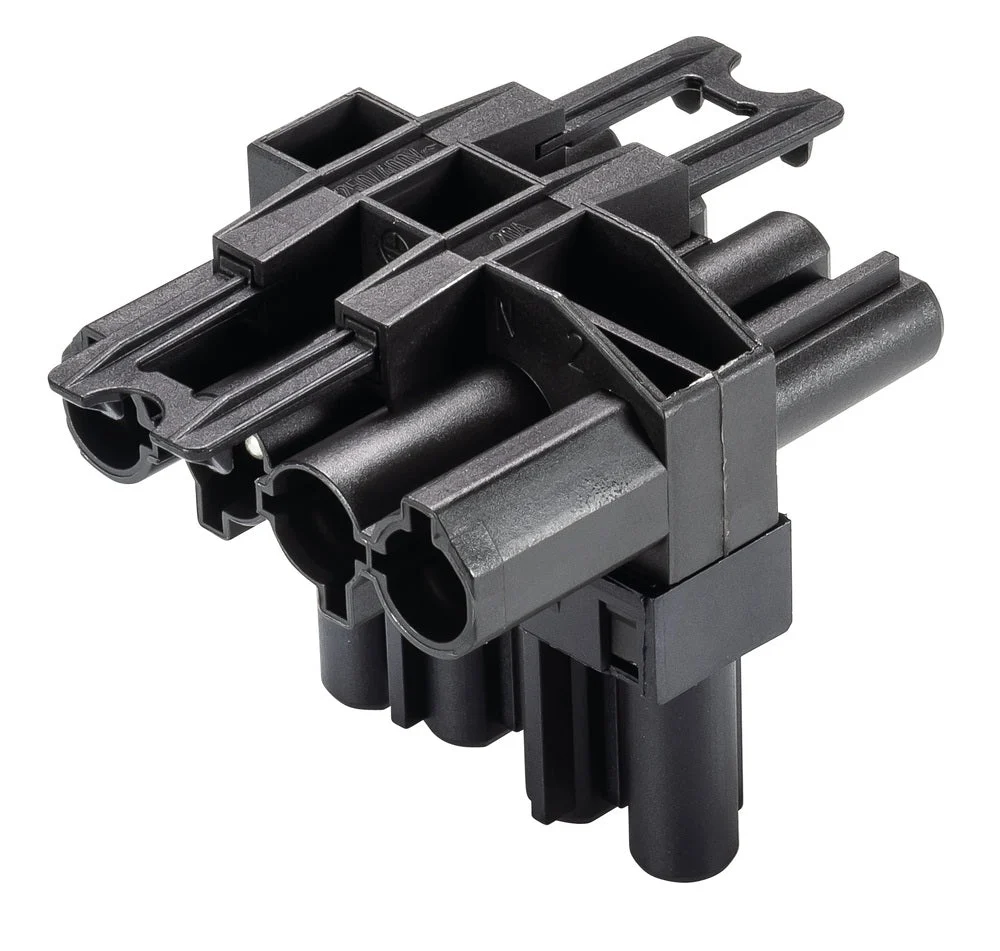

The Wieland GST18i4 is a compact T-splitter with dimensions of 38x43x44mm and is mainly black in colour. It features plug-in building installation, and has a pool marking of 2. N. PE. 1. The splitter has 2 outputs, 4 poles and 1 input. It offers an IP20 level of protection, and the contact material is constructed from copper-zinc (CuZn). The T-splitter is halogen-free, and ensures efficient functioning for your building installation needs.

Specifications

Rated voltage (V) : 400
Rated current (A) : 20
Number of poles : 4
Degree of protection (IP) : IP20
Number of inputs : 1
Number of outputs : 2
Pole codification : 2, N, PE, 1
Mechanical coding : Yes
Color coding/contact insert : Black
Color of the separate adapter piece : Without adapter piece
Locking mechanism : Integrated in plug-in connector
Halogen free : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Fire load (kWh) : 0.127
Contact material : CuZn
Surface treatment contacts : Tinned
Pollution degree : 2
Rated surge voltage (kV) : 4
Length (mm) : 44
Height (mm) : 43
Width (mm) : 38
Type of distributor : T-distributor
Mounting possibility : No
