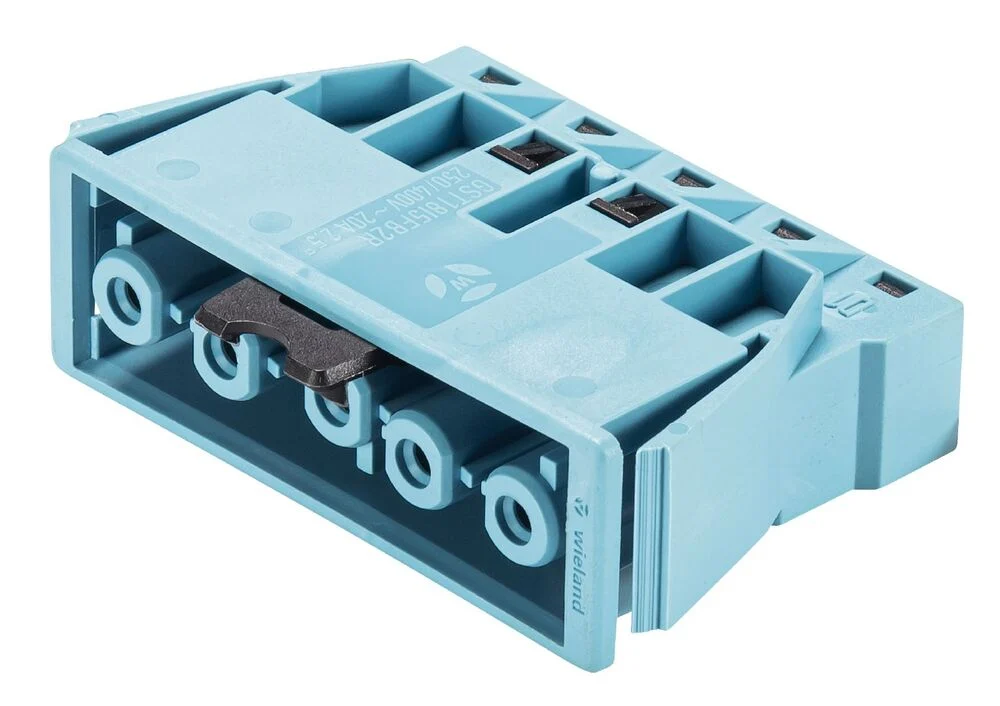

The Wieland GST18I5 is a device connector designed for building installations. It features a compact size measuring 52.3×18.5x38mm (WxHxL). The design includes a female contraplug variant and an inbuilt snap-in or screw part variant. However, it does not require a threaded connection as its connection method incorporates a spring clamp connection design. An important feature is the availability of two connections per pole, and it accommodates up to 5 poles. For protection, it is given an IP20 rating, indicating resistance to solid objects up to 12mm. Its body comes in pastel blue color with a spring lock feature.
Specifications
Rated voltage (V) : 400
Rated current (A) : 20
Number of poles : 5
Degree of protection (IP) : IP20
Connection type : Spring clamp connection
Model : Bus
Built-in version : Snap-in/screw-in device
Angle of plug : Straight
Connection cross section (fine-strand) (mm²) : 0.5 mm² to 1.5 mm²
Connection cross section (solid-core) (mm²) : 0.5 mm² to 2.5 mm²
Number of connections per pole : 2
Pole codification : L, N, PE, D1, D2
Mechanical coding : Yes
Color coding/contact insert : Other
Color of the separate adapter piece : Without adapter piece
Color housing : Other
Locking mechanism : Integrated in plug-in connector
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.1
Contact material : CuZn
Surface treatment contacts : Tinned
Pollution degree : 2
Rated surge voltage (kV) : 4
Length (mm) : 38
Height (mm) : 18.5
Width (mm) : 52.3
Wall thickness housing (mm) : 1.5
