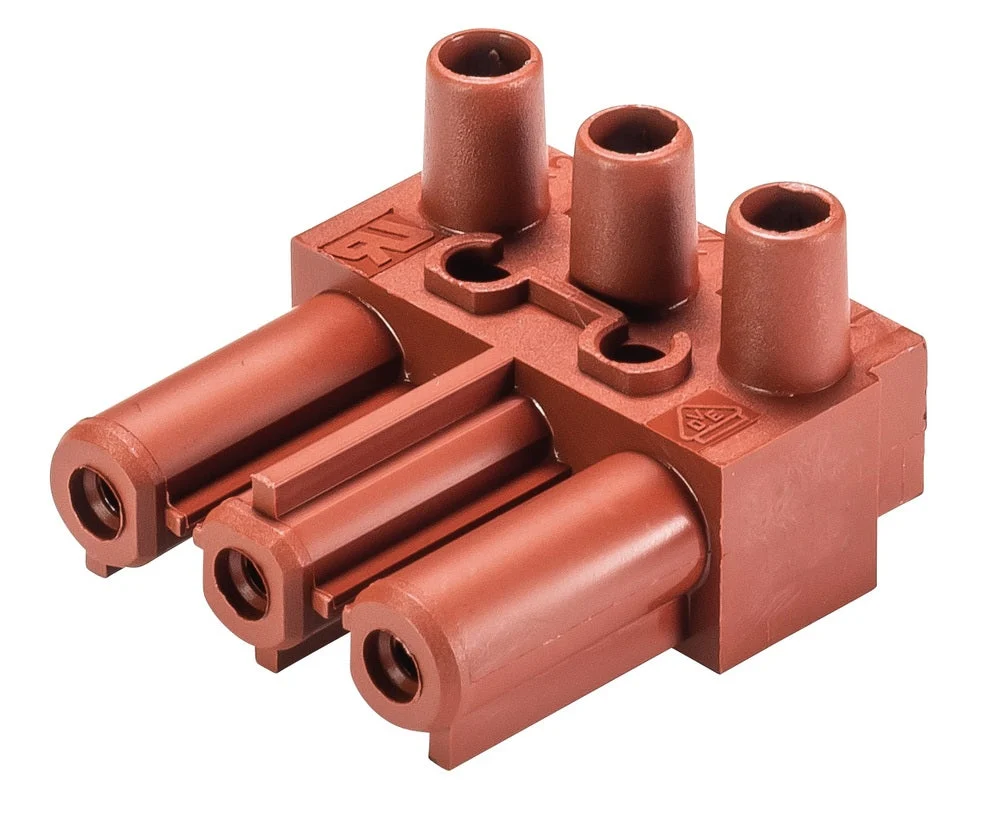

The Wieland GST18i3 is a connector designed for plug-in building installations. It features a dimensions of 28.2×19.5×31.5mm, and comes in a female contrast plug design. It is equipped with a brown coding and contact insert, and includes pool marking 1. 2. 3. for easy identification. Attachment is made using the screw connection method and its connection cross-section for solid wires is 4mm², while its connection cross-section for flexible wires is also 4mm². The connector has a 3-pole configuration.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : IP20
Connection type : Screw connection
Model : Bus
Built-in version : Built-in part/plug-in connection
Angle of plug : Straight
Connection size thread : M3
Connection cross section (fine-strand) (mm²) : 0.75 mm² to 4 mm²
Connection cross section (solid-core) (mm²) : 0.75 mm² to 4 mm²
Number of connections per pole : 1
Pole codification : 1, 2, 3
Mechanical coding : Yes
Color coding/contact insert : Brown
Color of the separate adapter piece : Without adapter piece
Color housing : Brown
Locking mechanism : Integrated in plug-in connector
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.038
Contact material : CuZn
Surface treatment contacts : Tinned
Pollution degree : 2
Rated surge voltage (kV) : 4
Length (mm) : 31.5
Height (mm) : 19.5
Width (mm) : 28.2
