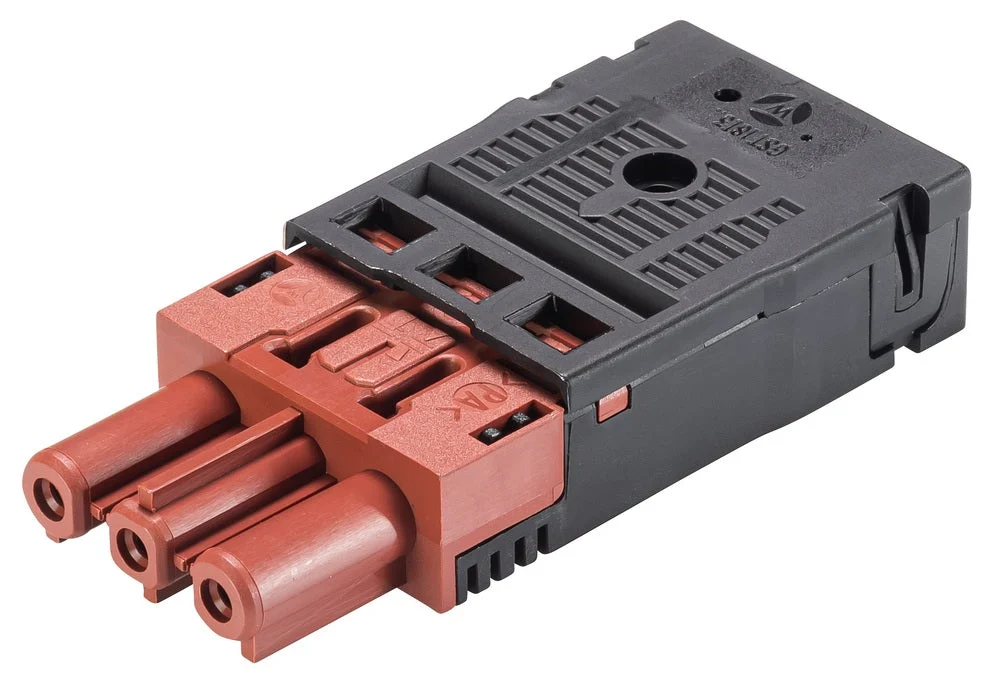

Wieland Gesis Classic Connector Female 3P 10A 250V – 92.933.0453.0

The Wieland GST18i3 is a female plug connector specifically designed for building installations. The dimensions are 32.5mm wide, 15.5mm high and 75mm long. It is characterized by a brown coding/contact insert and features a 1, 2, 3 pole marking system. The connector permits a spring clamp connection method, delivering a solid connection cross-section that ranges from 0.5mm² to 2.5mm². In addition, its flexible connection cross-section ranges from 0.5mm² to 1.5mm². This uniquely designed plug connector ensures a reliable and efficient connection in multiple applications.

Specifications

Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : IP40
Connection type : Spring clamp connection
Model : Bus
Cable diameter (mm) : 7.8 mm to 10.3 mm
Connection cross section (fine-strand) (mm²) : 0.5 mm² to 1.5 mm²
Connection cross section (solid-core) (mm²) : 0.5 mm² to 2.5 mm²
Number of connections per pole : 2
Pole codification : 1, 2, 3
Mechanical coding : Yes
Color coding/contact insert : Brown
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.12
Contact material : CuZn
Surface treatment contacts : Tinned
Pollution degree : 2
Rated surge voltage (kV) : 4
Length (mm) : 75
Height (mm) : 15.5
Width (mm) : 32.5
