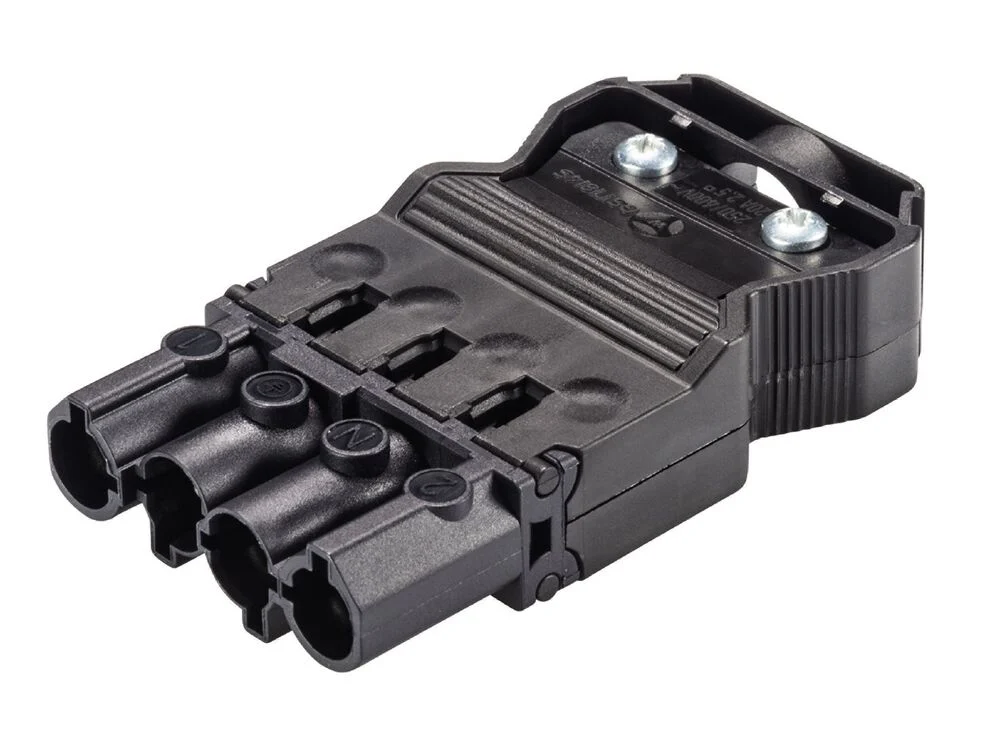

The Wieland GST18I4 is a male plug connector designed for integrated building installations. It features a plug dimension of 38x15x69.4mm, with the coding and contact insert in black color. The connector offers a pole marking of 2. N. PE. 1 and incorporates a screw connection method. The connection diameter for solid wire ranges from 0.75 to 2.5mm². Similarly, the plug is also compatible with flexible wires featuring a diametric connection in the same range.
Specifications
Rated voltage (V) : 400
Rated current (A) : 20
Number of poles : 4
Degree of protection (IP) : IP40
Connection type : Screw connection
Model : Plug
Cable diameter (mm) : 6.8 mm to 11.5 mm
Connection cross section (fine-strand) (mm²) : 0.75 mm² to 2.5 mm²
Connection cross section (solid-core) (mm²) : 0.75 mm² to 2.5 mm²
Number of connections per pole : 2
Pole codification : 2, N, PE, 1
Mechanical coding : Yes
Color coding/contact insert : Black
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.122
Contact material : CuZn
Surface treatment contacts : Tinned
Pollution degree : 2
Rated surge voltage (kV) : 4
Length (mm) : 69.4
Height (mm) : 15
Width (mm) : 38
