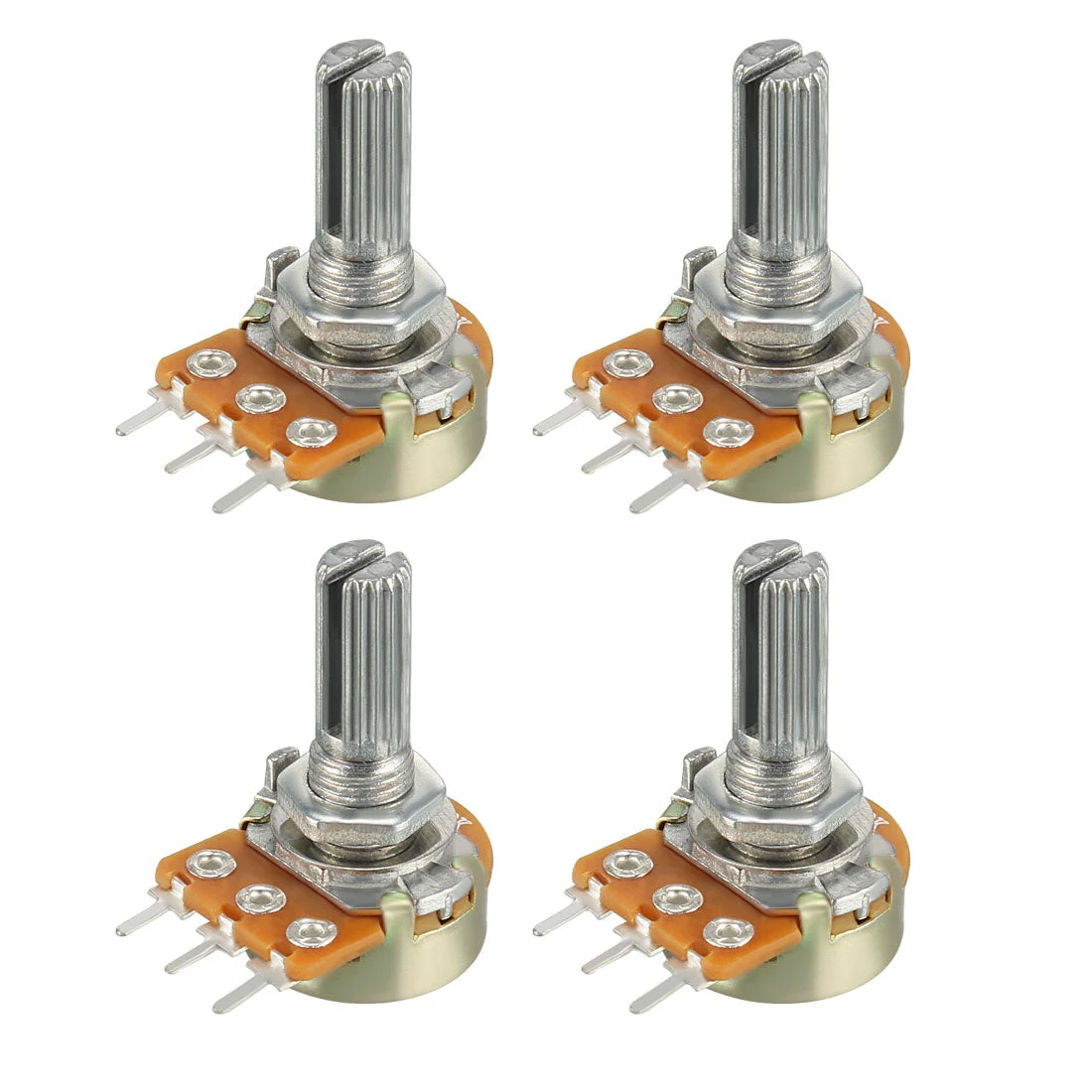

WH148 250K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper Potentiometer 4Pcs

About this item

• Model:WH148;Single potentiometer, linear diversify of resistance
• Resistance Value: 250K Ohm Tolerance:+/-20%,Thread Dia.: 6.7mm/0.26 inch
• Main used to control electrical devices such as volume controls on audio equipment，Amplifier and so on .
• Long life, soft touch, with soft center positioning
• Top adjustment type and knurled shaft for easy operate in daily use.

• Product Name: Carbon Film Potentiometer
• Model: WH148
• Material: Carbon film Metal
• Resistance Value: 250K ohm
• Tolerance: +/-20%
• Turn Number: Single Turn
• Terminals Number: 3
• Features: Round Shaft
• Total Size: 16.4mm x 28mm/0.65 x 1.1 inch (D * H)
• Screw Thread Dia.: 6.8mm/0.27 inch
• Shaft Diameter: 5.9mm/0.23 inch
• Shaft Length(do not include the Screw Thread parts): 13mm/0.51 inch
• Shaft Total Length: 20mm/0.79 inch
• Package Content: 4 x Carbon Film Potentiometer
• Features: 250K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)
• Top adjustment type and knurled shaft for easy operate in daily use.
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
