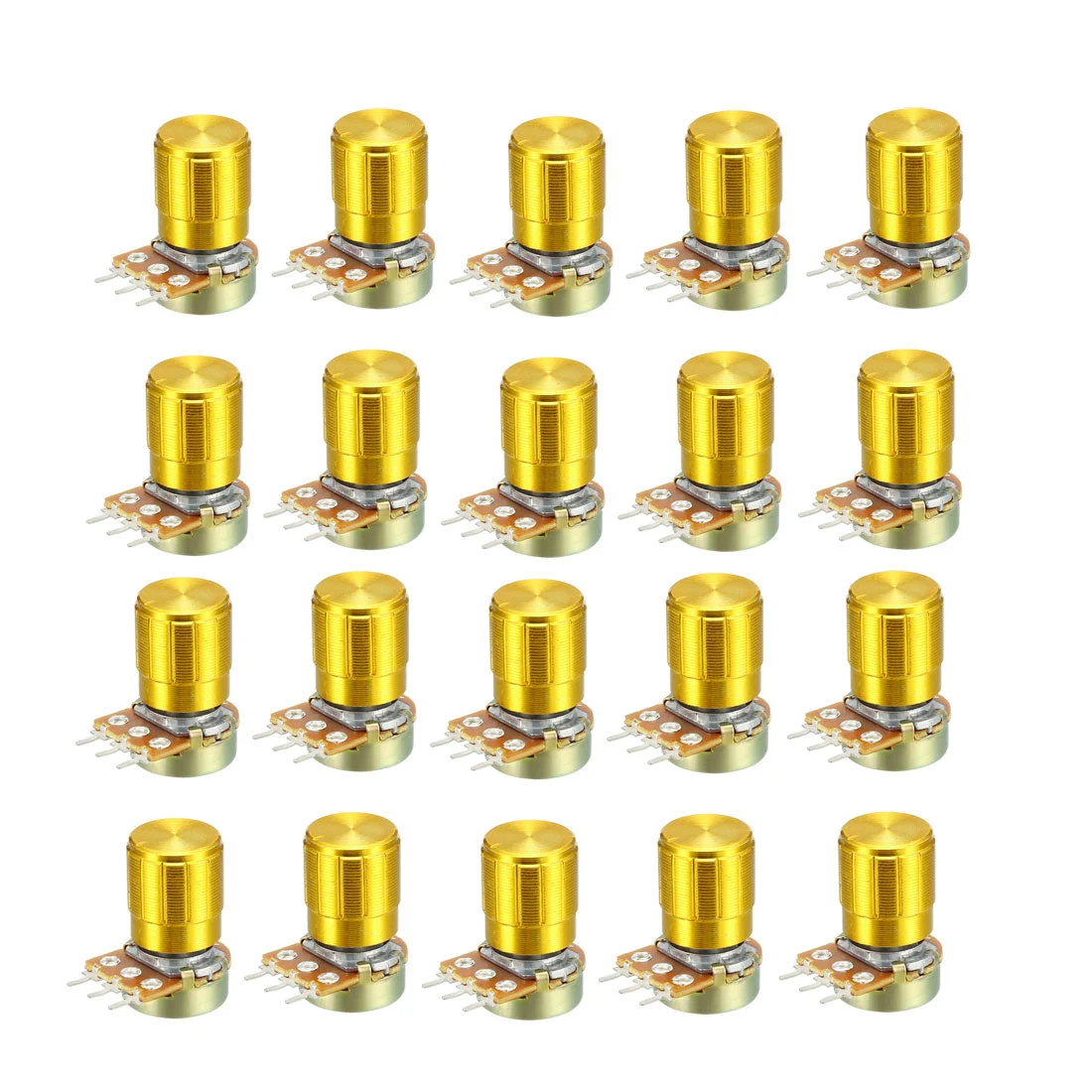

WH148 20K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper Potentiometer W Knobs 20pcs

About this item

• Model:WH148;Single potentiometer, linear diversify of resistance
• Resistance Value: 20K Ohm Tolerance:+/-20%,Screw Thread Dia.: 6.7mm/0.26 inch
• Main used to control electrical devices such as volume controls on audio equipment，Amplifier and so on .
• Long life, soft touch, with soft center positioning
• Knurled shaft with split design for push-on knob.this item include Knob easy for you to use

• Product Name: Carbon Film Potentiometer
• Model: WH148
• Material: Carbon film Metal
• Resistance Value: 20K ohm
• Tolerance: +/-20%
• Turn Number: Single Turn
• Terminals Number: 3
• Features: Round Shaft
• Total Size: 23.9mm x 16.4mm/0.94 x 0.65 inch (H * D)
• Screw Thread Dia.: 6mm/0.23 inch
• Shaft Diameter: 6mm/0.23 inch
• Shaft Length(do not include the Screw Thread parts): 8.5mm/0.33 inch
• Shaft Total Length: 15mm/0.59 inch
• Package Content: 20 x Carbon Film Potentiometer / 20 xKnobs
• Knobs Size: 14.5x16mm/0.57×0.63 (DxH)
• Knobs Color: Golden
• Features: 20K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.
• Top adjustment type and knurled shaft for easy operate in daily use.
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
