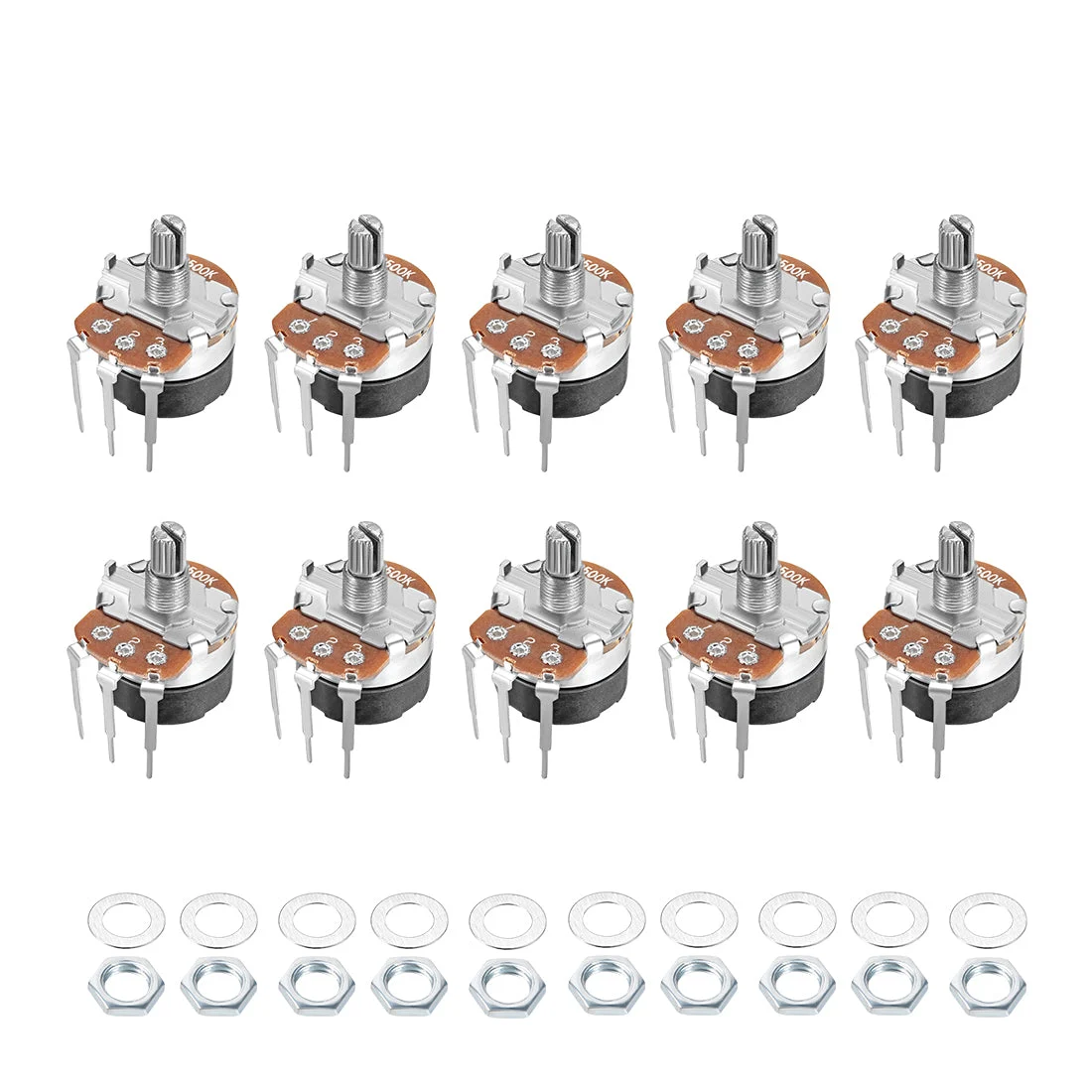

WH138 Potentiometer with Switch 500K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper 10pcs

About this item

• 1. Model: WH138, 500K ohm, Tolerance: +/-10%, 5 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)
• 2. About Size: Shaft Diameter: 6mm/0.24 inch, Total Size: 44mm x 17mm x 24mm(L*W*H)(not included pin)
• 3. Knurled shaft with split design for push-on knob.
• 4. Mainly used for dimming, speed regulation, temperature regulation, etc. of electronic products, suitable for audio and video, governor, microwave oven, loudspeaker, car amplifier, etc.
• 5.Top adjustment type and knurled shaft for easy operate in daily use.

Description:

1.Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)

2.Top adjustment type and knurled shaft for easy operate in daily use.

3. Mainly used for dimming, speed regulation, temperature regulation, etc. of electronic products, suitable for , audio and video, governor, microwave oven, loudspeaker, amplifier, etc.

4. Knurled shaft with split design for push-on knob.

Specification:

Product Name: bon Film Potentiometer

Model: WH138

Material:bon film Metal

Resistance Value: 500K ohm

Tolerance:+/-10%

Turn Number:Single Turn

Terminals Number:5

Features: Round Shaft

Total High: 40mm

Base Size: 18mm x 24mm  ( HxD)

Screw Thread Dia.: 7.6mm

Shaft Diameter:6mm/0.24 inch

Package Content:

10 x bon Film Potentiometer
