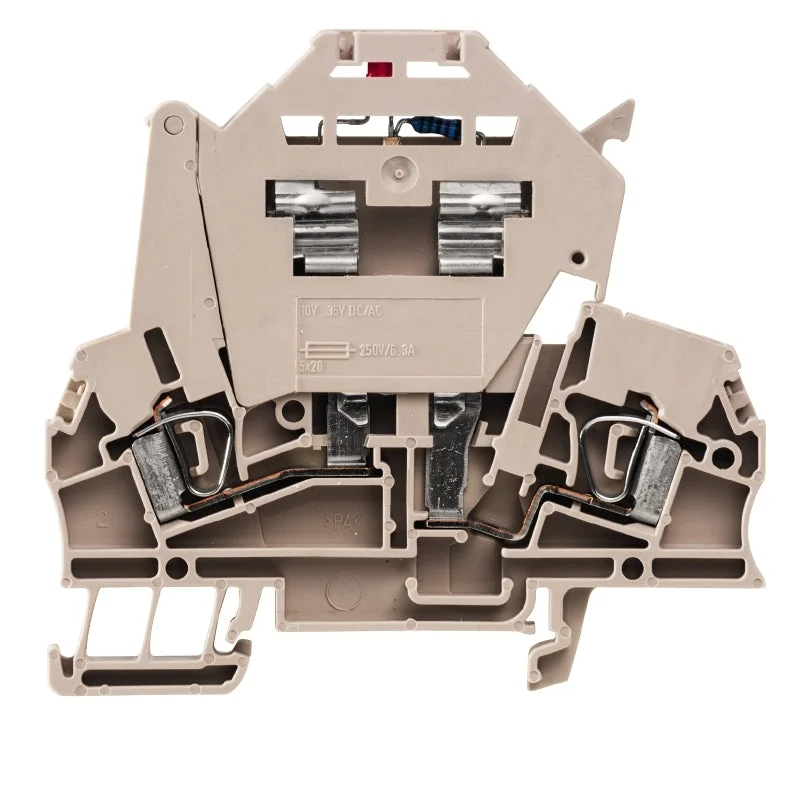

Weidmuller ZSI fuse clamp – 1616440000

Weidmuller ZSI fuse row clamp, beige, (WxDxH) 7.9×79.5x73mm, fuse cartridge design tube fuse 5x20mm, supply voltage for defect indica 28V, DIN rail 35mm, voltage type for defect indication AC/DC, fuse holder design (cartridge swiveling, nom. (measuring) current In 6.3A.

Specifications

Type of fuse insert : G-fuse 5×20 mm
Type of fuse holder : Swivelling
Type of indication element for defect indication : LED
Supply voltage for defect-indication (V) : 28 V to 28 V
Voltage type for defect indication : AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.5 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 2.5 mm²
Connectable conductor cross section solid-core (mm²) : 0.5 mm² to 4 mm²
Connectable conductor cross section multi-wired (mm²) : 0.5 mm² to 4 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 28
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Other
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Operating temperature (°C) : -50 °C to 120 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 7.9
Height (mm) : 79.5
Depth (mm) : 73
Closing plate required : Yes
Color : Beige
