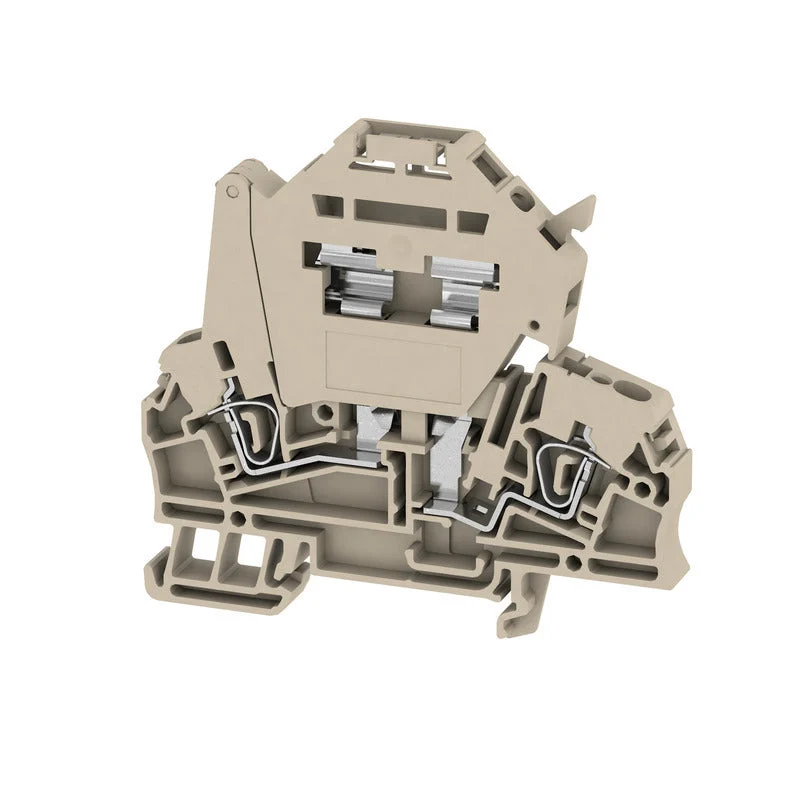

The clamp’s fuse holder is easy to reach and swivels, allowing you to quickly and safely replace a fuse if needed. Thanks to its spring clamp connection, this Z maintenance-free fuse row clamp is quick and easy to install. This fuse row clamp is suitable for pipe fuses of 5 x 20 mm. Weidmuller Z fuse row clamps are available in different variants.
Specifications
Type of fuse insert : G-fuse 5×20 mm
Type of fuse holder : Swivelling
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 500 V to 500 V
Voltage type for defect indication : AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.5 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 2.5 mm²
Connectable conductor cross section solid-core (mm²) : 0.5 mm² to 4 mm²
Connectable conductor cross section multi-wired (mm²) : 0.5 mm² to 4 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 500
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Other
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Operating temperature (°C) : -50 °C to 120 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 7.9
Height (mm) : 79.5
Depth (mm) : 73
Closing plate required : Yes
Color : Beige
