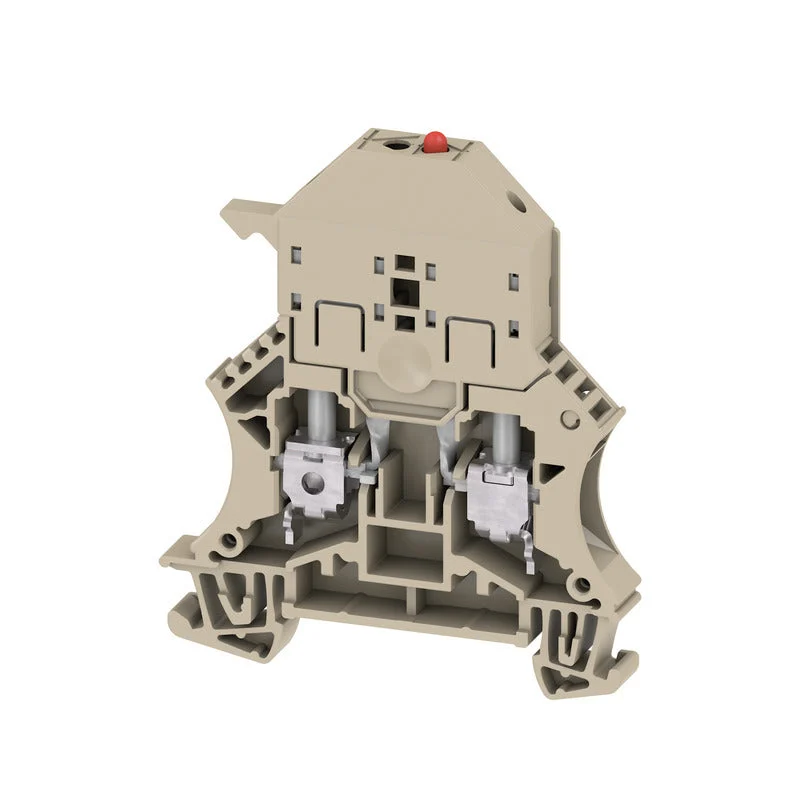

The clamp’s fuse holder is easy to reach and swivels, allowing you to quickly and safely replace a fuse if needed. Thanks to its screw connection, this W maintenance-free fuse rail clamp is quick and easy to install. After installation, the screws of this clamp do not need to be retightened. This fuse row clamp is suitable for 5 x 20 mm tube fuses. Equipped with clearly visible LED indication with extremely low leakage current for error indication. Weidmuller W fuse row clamps are available in different variants.
Specifications
Type of fuse insert : G-fuse 5×20 mm
Type of fuse holder : Swivelling
Type of indication element for defect indication : LED
Supply voltage for defect-indication (V) : 36 V to 36 V
Voltage type for defect indication : AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.5 mm² to 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 0.5 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 10 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 36
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Operating temperature (°C) : -50 °C to 120 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 7.9
Height (mm) : 60
Depth (mm) : 71.5
Closing plate required : Yes
Color : Beige
