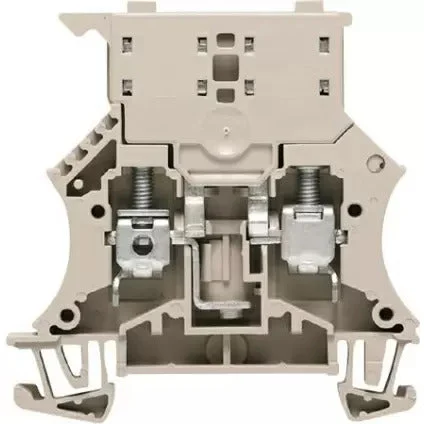

The clamp’s fuse holder is easy to reach and swivels, allowing you to quickly and safely replace a fuse if needed. Thanks to its screw connection, this W maintenance-free fuse rail clamp is quick and easy to install. After installation, the screws of this clamp do not need to be retightened. This fuse row clamp is suitable for pipe fuses of 5 x 20 mm. Weidmuller W fuse row clamps are available in different variants.
Specifications
Type of fuse insert : G-fuse 5×20 mm
Type of fuse holder : Swivelling
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 250 V to 250 V
Voltage type for defect indication : AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.5 mm² to 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 0.5 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 10 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 500
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Operating temperature (°C) : -50 °C to 120 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 7.9
Height (mm) : 60
Depth (mm) : 61
Closing plate required : Yes
Color : Beige
