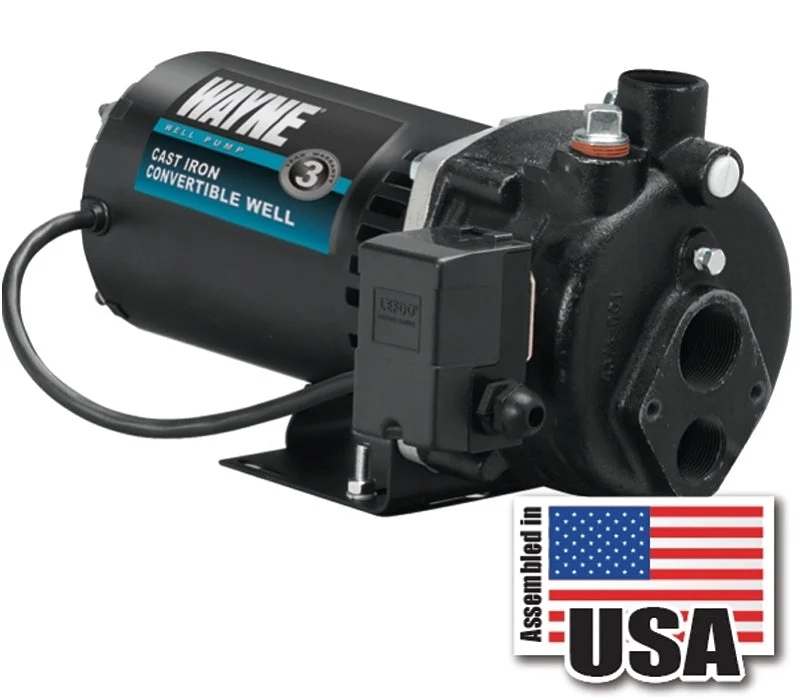

Jet pumps are single-stage domestic water pumps designed for pumping potable water in applications where the water is up to 100 ft below pump center line. A pressure switch is a standard feature. A built-in control valve is available on deep well pumps. Deep well pumps can be mounted to either a pre-charged, conventional type or free- standing pressure tank.
Unit: EA
UPC: 040066105950
Model Number: CWS75
Features
- Dual voltage (120/240 V) high efficiency square flange motor (factory set for 240 V)
- Pressure switch is pre-set at 30-50 psi for automatic operation
- Durable cast iron volute with dedicated priming port for volute filling
- For wells 0 – 90 ft in depth
- Jet assembly required
Additional Information
- Connection Size: 1-1/4 in Suction 3/4 in Discharge
- Connection Type: NPT
- Flow Rate: 462 gph
- Frequency Rating: 60 Hz
- HP Rating: 0.75 hp
- Material: Iron
- Maximum Head: 90 ft
- Motor Type: Dual Voltage
- Pressure Rating: 50 psi
- Suitable for: 0 to 90 ft Depth Wells
- Voltage Rating: 120/240 V
