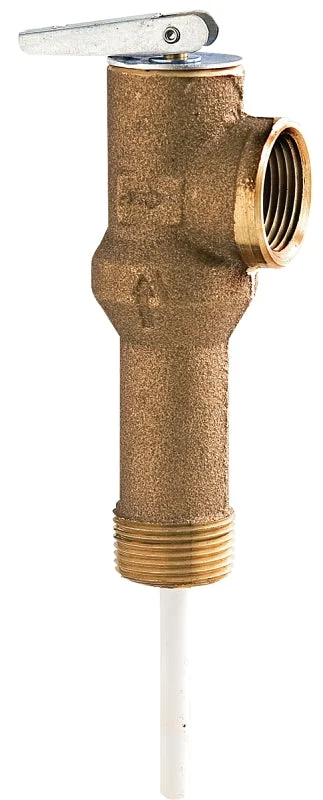

Used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. Features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. ASME rated and CSA listed. Temperature relief is 210 deg F (99 deg C), Pressure relief range is 75 to 150psi (5.2 to 10.3 bar).
Unit: EA
UPC: 098268871319
Model Number: LL100XL-150/210
Features
- Thermo-bonded, non-metallic protective coating on thermostat
Additional Information
- Body Material: Bronze
- Connection Type: MNPT x FNPT
- Nominal Size: 3/4 in
- Operating Pressure: 75 to 150 psi
- Temperature Rating: 210 deg F
