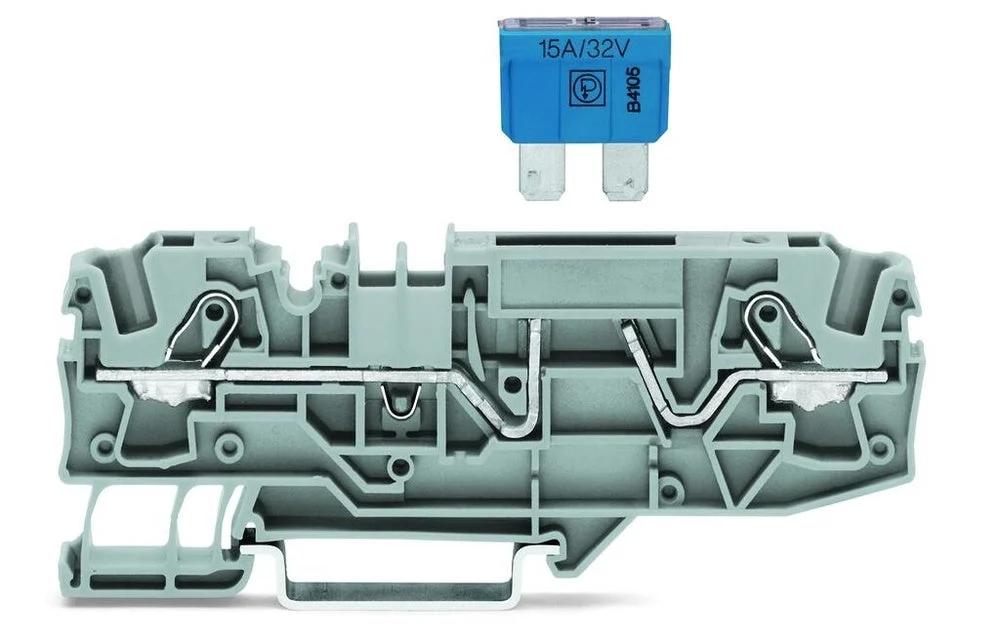

Topjob s, 2-conductor fuse terminal block, for automotive blade-style fuses, with test option, without blown fuse indication, 6 mm², push-in cage clamp, 6,00 mm², gray.
Specifications
Type of fuse insert : Blade fuse
Type of fuse holder : Pluggable
Type of indication element for defect indication : None
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.5 mm² to 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 1.5 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 0.5 mm² to 6 mm²
Rated current In (A) : 25
Rated voltage (V) : 500
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Spring clamp connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 7.5
Height (mm) : 96.3
Depth (mm) : 32.9
Closing plate required : Yes
Color : Grey
