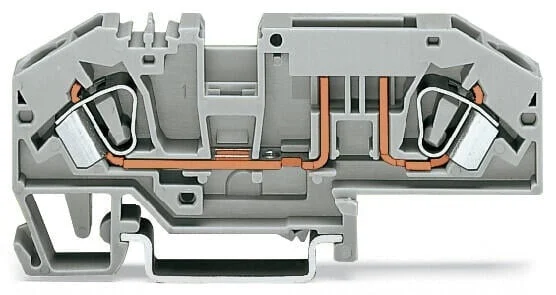

Cage clamp – 282 series. Feed-through din rail terminal connections for din rail mounting. These conductor-through terminals feature cage clamp technology for ultra-quick connection. Features and benefits. Din rail mounting on ts 35 rail. Front-wired. Intermediate or end plates are also available. 2 conductors. 282 series.
Specifications
Type of fuse insert : Blade fuse
Type of fuse holder : Pluggable
Type of indication element for defect indication : None
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 6 mm²
Rated current In (A) : 25
Rated voltage (V) : 400
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Spring clamp connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8
Height (mm) : 85
Depth (mm) : 33.5
Closing plate required : Yes
Color : Grey
