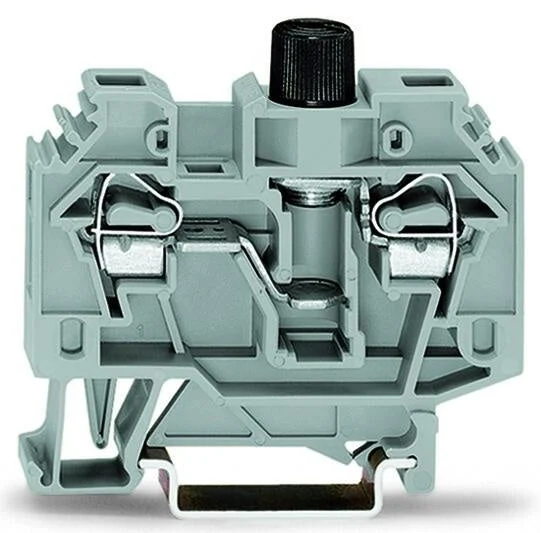

Wago 282 Fuse Clamp – 282-122 [40 Pieces]

2-conductor fuse terminal block, for 5 x 20 mm miniature metric fuse, without blown fuse indication, for din-rail 35 x 15 and 35 x 7.5, 6 mm², cage clamp, 6,00 mm², gray.

Specifications

Type of fuse insert : G-fuse 5×20 mm
Type of fuse holder : Screwable
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 0 V to 0 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 6 mm²
Rated current In (A) : 10
Rated voltage (V) : 500
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Spring clamp connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 13
Height (mm) : 62
Depth (mm) : 54.5
Closing plate required : Yes
Color : Grey
