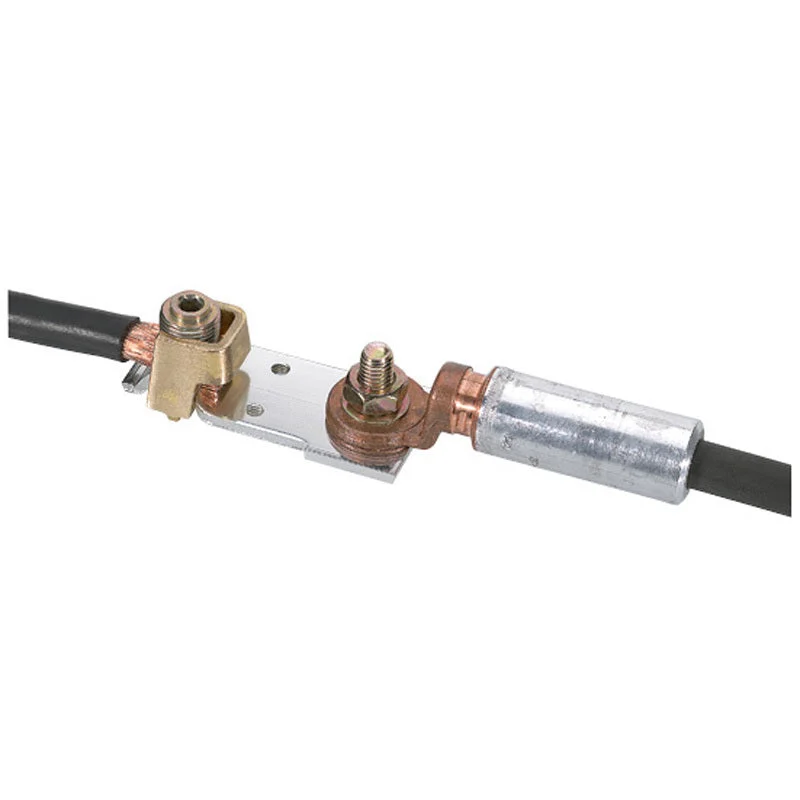

Viking Power Terminal 150mm2 KS-KB Cable Block – 039021

The Legrand Viking Separation Terminal Block is a premium technical product designed for efficient electrical installations and applications. Known for its excellent durability and high safety standards, it is ideal for facilitating optimal wire management, reducing installation time, and ensuring a reliable connection between two or more electrical circuits. Its noteworthy features make it a favored choice in the industry.

Specifications

Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 70 mm² to 300 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 70 mm² to 300 mm²
Connectable conductor cross section solid-core (mm²) : 70 mm² to 300 mm²
Connectable conductor cross section multi-wired (mm²) : 70 mm² to 300 mm²
Rated current In (A) : 570
Rated voltage (V) : 1000
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Bolt connection
Number of levels : 1
Number of clamp positions per level : 1
Internally connected stages : No
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Inflammability class of insulation material according to with UL94 : V2
Operating temperature (°C) : -5 °C to 40 °C
Width (mm) : 55
Height (mm) : 113.5
Depth (mm) : 337
Closing plate required : No
Color : Grey
Type of slitting : Swivelling
With integrated test socket : Yes
