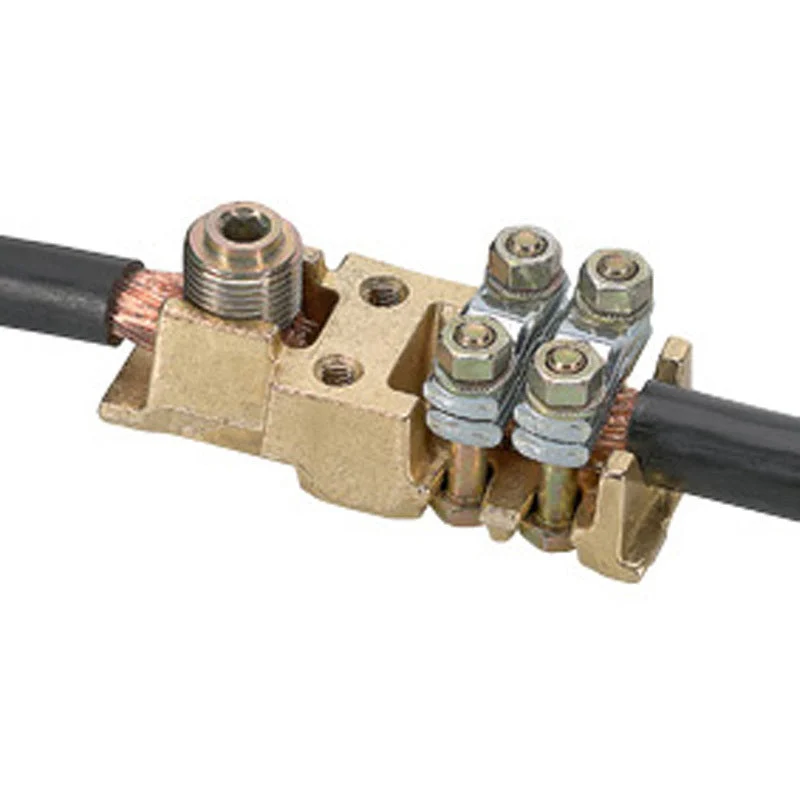

Viking Power Clamp 70-300mm2 S-KB – 039011

The Legrand Viking separation terminal block is a high-quality technical component essential for safe and efficient electrical installations. This component serves an important purpose in segregating electrical circuits, enhancing the overall safety and functionality of the system. Known for its superior craftsmanship, the Legrand Viking separation terminal block is a trusted and reliable choice for numerous electrical professionals globally.

Specifications

Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 70 mm² to 300 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 70 mm² to 300 mm²
Connectable conductor cross section solid-core (mm²) : 70 mm² to 300 mm²
Connectable conductor cross section multi-wired (mm²) : 70 mm² to 300 mm²
Rated current In (A) : 400
Rated voltage (V) : 1000
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Number of clamp positions per level : 1
Internally connected stages : No
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Inflammability class of insulation material according to with UL94 : V2
Operating temperature (°C) : -5 °C to 40 °C
Width (mm) : 55
Height (mm) : 113.5
Depth (mm) : 337
Closing plate required : No
Color : Grey
Type of slitting : Swivelling
With integrated test socket : Yes
