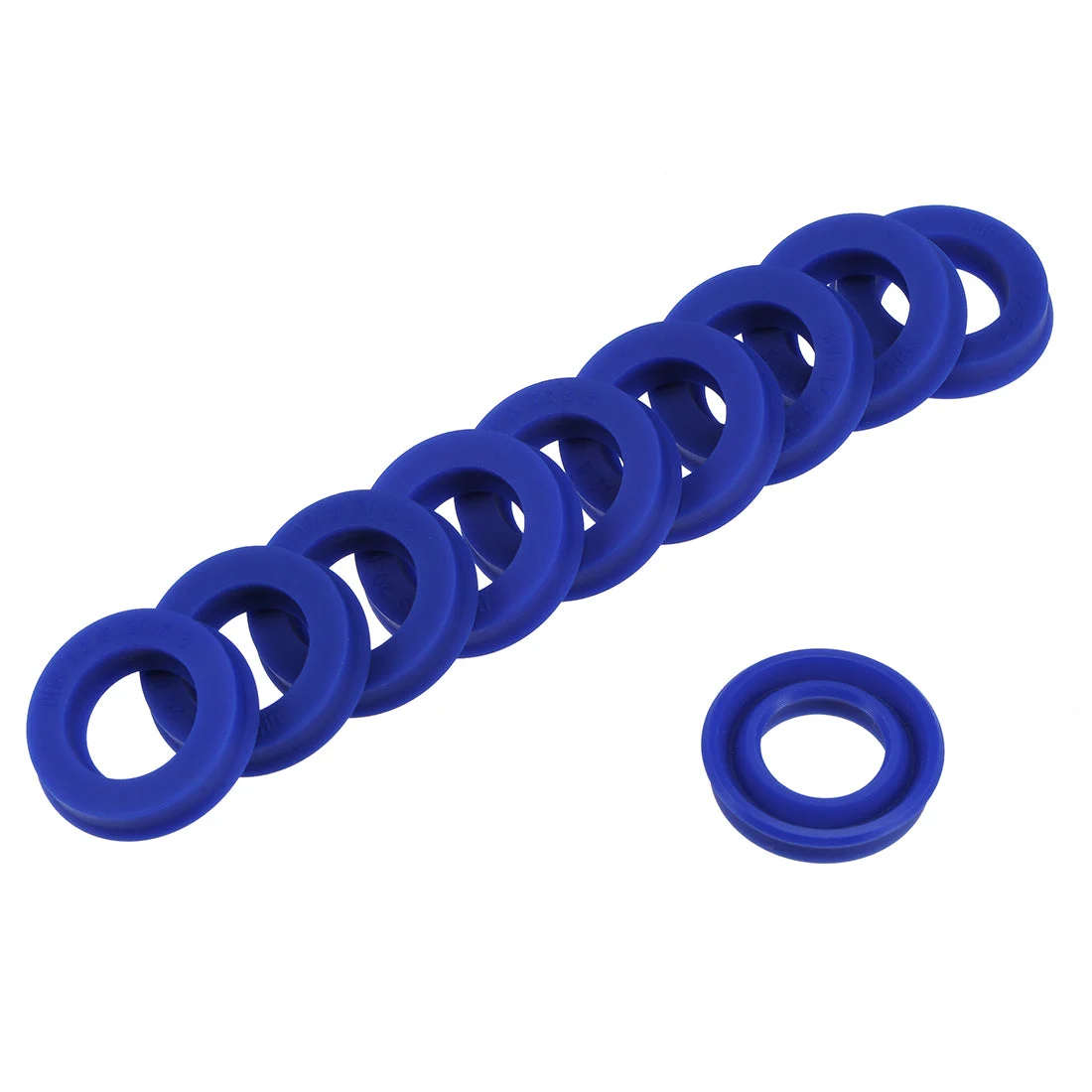

Uxcell UHS Radial Shaft Seal 28mm ID x 35.5mm OD x 5mm Width PU Oil Seal, Blue Pack of 10

About this item

• [Size] – 12mmx20mmx5mm Y-shape 90A mechanical seal for piston and piston rod
• [Operation Range] – Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
• [PU Material] – Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity
• [Advantage] – Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
• [Application] – Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure

Features:
UHS oil seal’s inner and outer sealing lip are the same height, with a Y-shape cross-section.
PU seal is oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity, and easy to install.
Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering. Both piston and piston rod can obtain a good sealing effect.
Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure.
Specifications:
Color: Blue
Material: Polyurethane (PU)
Inner Diameter: 12mm
Outer Diameter: 20mm
Max. Outer Diameter: 21mm
Width: 5mm
Hardness: 90A
Working Speed: Less than 0.5m/s
Working Pressure: Less than 35Mpa
Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
Cross Section Type: Y Shape
Package Contents:
10 x Lip Seals
