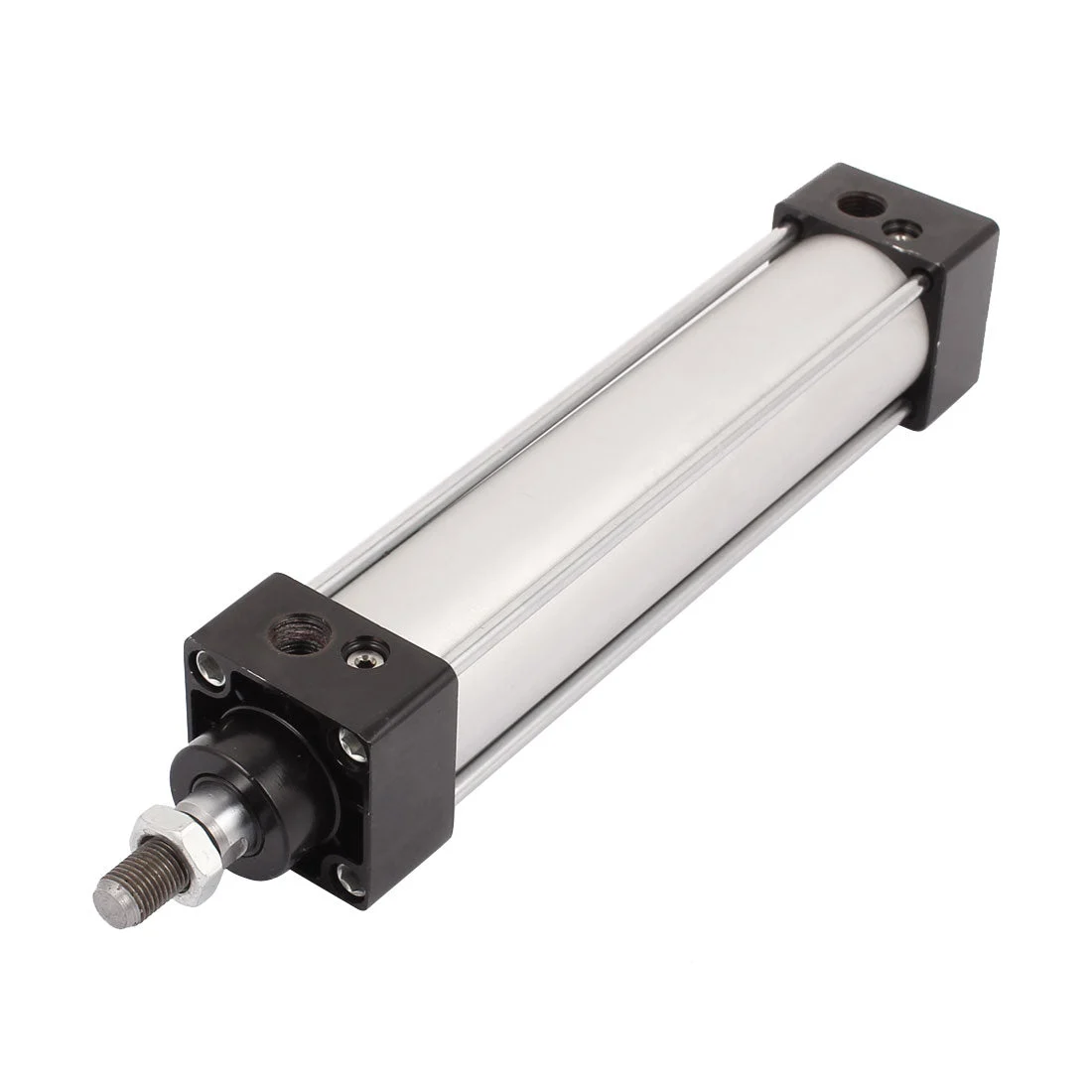

Uxcell SC40x150 Single Piston Rod Double Action Pneumatic Air Pressure Cylinder

About this item

• Product Name: Air Cylinder; Material: Metal; Color: Black,Silver Tone
• Size: 50 x 50 x 290mm/2″ x 2″ x 11.4″(L*W*H); Product Weight: 1016g; Package Content: 1 x Air Cylinder
• Max.Working Press: 1.0MPa; Model: SC40 x 150; Action Type: Double Action
• Bore Diameter: 40mm/1.6″; Stroke: 150mm/6″; Fluid: Air
• Rod Thread Diameter: 12mm / 0.5″; Air Hole Diameter: 12mm / 0.5″; Rod Type: Single Rod

This Cylinder features: 40mm bore and 150mm stroke, double acting, single rod.
Two screw hole connections to get the air in and out, and a rod connected to the plunger that goes in and out.
Cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
