About this item
- NC (Normally Closed), when refrigerator’s door open it is close and light will be on
- Rated Power: AC 250V 3A

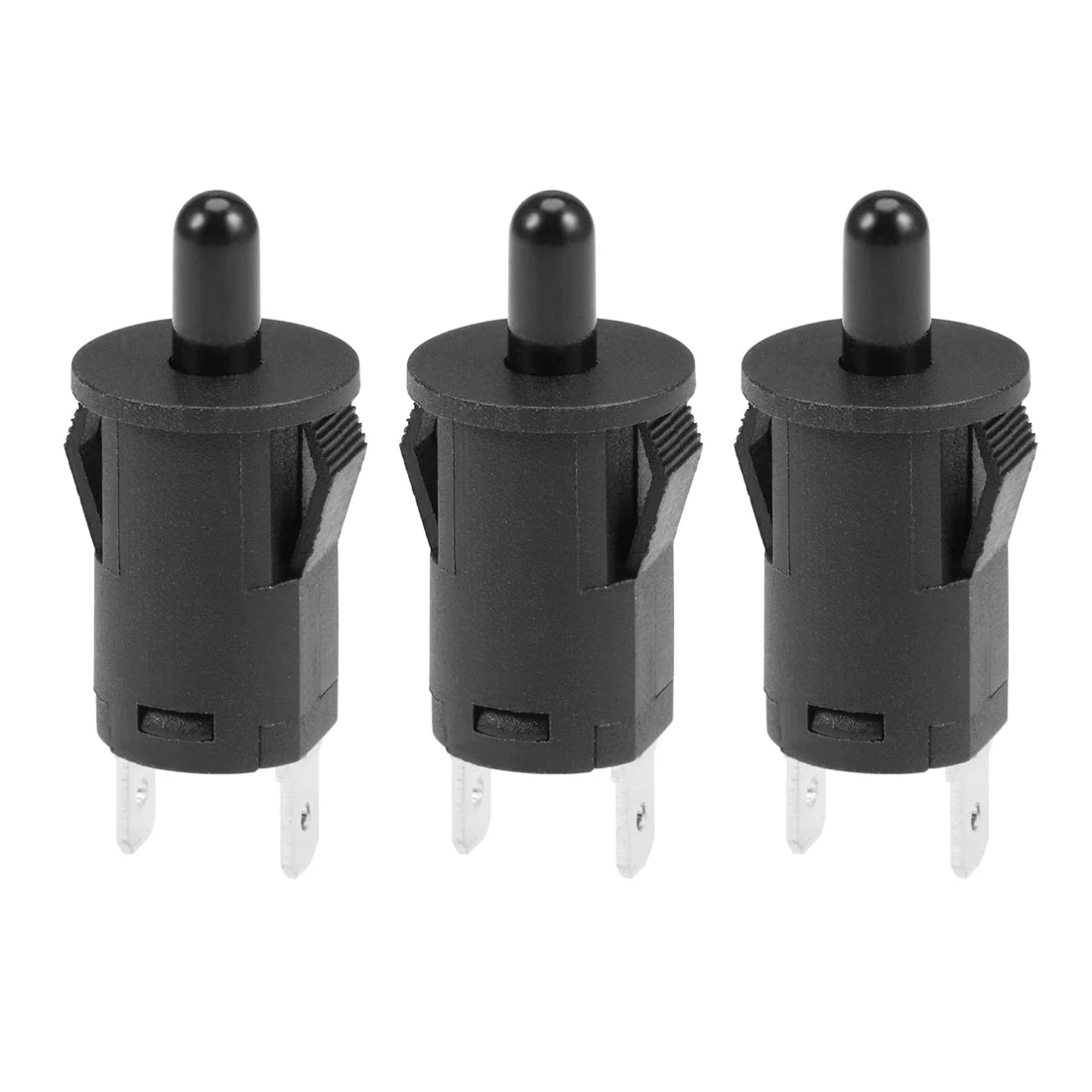

- Momentary type Refrigerator Switch with 10mm length push
- This door light switch is single pole and snap-in mounted
- Universal and compatible design, replace for most , Admiral, Amana, Crosley, Jenn-Air, Kenmore, , Magic Chef refrigerators’ door light switch
Description:
-With single pole options, these momentary door switches are ideal not only for traditional refrigerator and freezer applications but can and have been used in a variety of door applications as well.
-This switch activates the refrigerator light when the door is open. It also prevents the from working if the door is open.
-The most common reasons for replacing the door switch are when the ice maker doesn’t work, the doesn’t work, or the fridge light doesn’t work.
Specification:
Model: PB35
Rated Power: AC 250V 3A
Contacts Type: Normally Closed
Action Type: Momentary
Push Bottom Length: 10mm / 0.39″
Terminal Size: 4.8 x 0.8mm
Panel Hole Size: 15 x 13mm / 0.59″ x 0.51″ (D*W)
